Home > products > Iris Access Control > D30T Access Control Terminal: Non-Contact Infrared Temperature Measurement

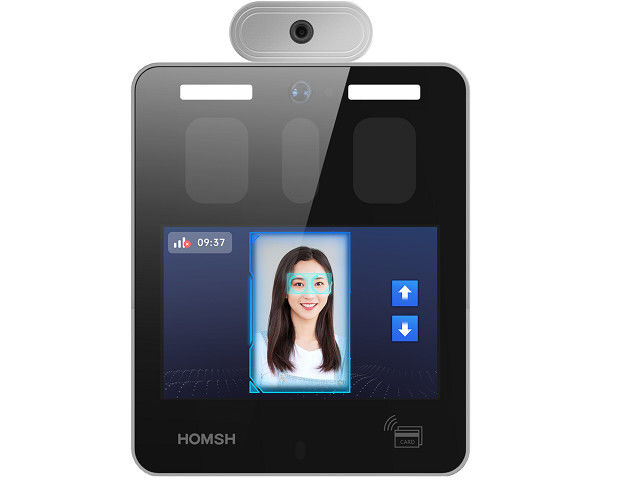

D30T Access Control Terminal: Non-Contact Infrared Temperature Measurement

Product Details

Place of Origin: China

Brand Name: HOMSH

Certification: ISO9001

Model Number: D30T

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiated

Delivery Time: 5-8 work day

Payment Terms: T/T

Get Best Price
Highlight:
Product Size:
222*182*45mm
Display Screen:
7-inch Capacitive Touchscreen, Resolution 1280*800 Pixels
Camera:
Iris: 2MP, Face: 2MP
Working Distance:
Iris: 35~50cm,Face: 35~100cm
Height Range:
1.4~1.9m
Average Recognition Time:
Iris ≤1.5s, Face ≤1.5s
Product Model:
D30T
Temperature Measurement Range:
35-70cm
Temperature Accuracy:
±0.3°C
Communication Method:
TCP/IP
Operating Temperature:
-10°C~55°C
Installation Method:
Wall-mounted
Operating Light Intensity:
0~6000 Lux (non-direct Sunlight)
Power Voltage:
DC 12V@3A
Product Size:
222*182*45mm
Display Screen:
7-inch Capacitive Touchscreen, Resolution 1280*800 Pixels
Camera:
Iris: 2MP, Face: 2MP
Working Distance:
Iris: 35~50cm,Face: 35~100cm
Height Range:
1.4~1.9m
Average Recognition Time:
Iris ≤1.5s, Face ≤1.5s
Product Model:
D30T
Temperature Measurement Range:
35-70cm
Temperature Accuracy:
±0.3°C
Communication Method:
TCP/IP
Operating Temperature:
-10°C~55°C
Installation Method:
Wall-mounted
Operating Light Intensity:
0~6000 Lux (non-direct Sunlight)
Power Voltage:
DC 12V@3A
D30T Access Control Terminal: Non-Contact Infrared Temperature Measurement

Description



The D30T is a versatile access control device that supports multiple authentication methods, including iris recognition, facial recognition, and password entry. Designed for adaptability, it features automatic vertical adjustment of the camera to accommodate individuals of varying heights. With non-contact infrared body temperature measurement capabilities and a user-friendly 7-inch touchscreen display, the D30T offers a seamless and intelligent access control experience.

The D30T can quickly transform into a smart thermal iris access control terminal. It enables contactless and long-distance precise identity verification, unaffected by factors like eyeglasses, masks, or head coverings. When an individual approaches, successful iris recognition and a normal body temperature trigger door access, while abnormal temperature readings prompt an automatic temperature alert. All user identity and temperature data are automatically uploaded to the backend service system.

This intelligent terminal is effective in monitoring the passage of individuals with abnormal body temperatures, It finds wide applications in various fields, including smart communities, intelligent buildings, public safety, finance, healthcare, education, and more, enhancing access control security and identity verification capabilities.



Functional



  • Equipped with iris recognition technology autonomous iris recognition algorithm Phaselris™ and the world's first hardcore dedicated iris recognition intelligent chip Qianxin™;
  • The algorithm performance conforms to the national standard "Information Security technology iris recognition system function to the core algorithm performance" (GB/T20979-2019);
  • The device uses a hard-core chip for front-end comparison processing to achieve offline recognition comparison. Biometric image preprocessing, image coding and image coding and encryption are all completed on a hard-core dedicated biometric chip to ensure that iris information is securely sealed before transmission.
  • With live detection (completed on the core dedicated chip for iris recognition), it completely eliminates the registration and recognition of false eyes
  • Support iris, face, password, CPU card (optional) and other ways to open doors;
  • The lens supports automatic Angle adjustment to adapt to people of different heights;
  • 7 inch capacitive touch screen, visual graphical interface operation and intelligent voice prompt;
  • Non-contact in vitro temperature measurement, reduce the risk of cross contact, automatic alarm of abnormal body temperature;
  • Using human eye tracking iris natural color display technology, perfect interactive experience



Specification



Product Model D30T
Product Size 222*182*45mm
Display Screen 7-inch capacitive touchscreen, resolution 1280*800 pixels
Camera Iris: 2MP, Face: 2MP
Working Distance Iris: 35~50cm,Face: 35~100cm
Recognition Methods Iris, Face, Password, IC Card (optional)
Height Range 1.4~1.9m
User Capacity Iris: 10,000 individuals, Face: 10,000 individuals, IC Card: 10,000 cards
Average Recognition Time Iris ≤1.5s, Face ≤1.5s
False Acceptance Rate (FAR) Iris: 10-7, Face: 10-4
False Rejection Rate (FRR) Iris: 10-3, Face: 10-3
Temperature Measurement Range 35~70cm
Temperature Accuracy ±0.3°C
Infrared Safety Standard Complies with ANSI RP-27.1-96 (USA) and IEC/EN62471 (EU) standards
Core Algorithm Performance Meets the requirements of "Technical Requirements for Information Security Iris Recognition Systems" GB/T20979-2019
Iris Image Quality Complies with national standard GB/T33767.6-2018 for iris image data
Communication Method TCP/IP
Other Interfaces DC/RJ45/RS-485/Wiegand Output/Door Lock/Exit Button/USB 2.0
Operating Temperature -10°C~55°C
Operating Humidity 0~93% RH, non-condensing
Operating Light Intensity 0~6000 Lux (non-direct sunlight)
Power Voltage DC 12V@3A
Installation Method Wall-mounted
Operation Indication LCD screen prompts, voice guidance



Application



D30T equipped with human infrared temperature measurement module formed intelligent temperature iris access control, can be widely used in banks, schools, hospitals, factories, enterprise buildings and other need to strictly screen the abnormal temperature of passerby places;
