Product Details
Place of Origin: China
Brand Name: HOMSH
Certification: ISO9001
Model Number: D20
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiated
Delivery Time: 5-8 work day
Payment Terms: T/T
Product Model: |
D20 |
Product Size (L*W*H): |
140*318*56mm |
Display Screen: |
4 Inches, Resolution 800*480pixel |
Camera: |
Iris :2MP |
Working Distance: |
Lris:35~50cm |
Identification Mode: |
Iris, IC Card, Password |
Adaptive Height Range: |
1.5~1.8m |
User Capacity: |
Iris :2000 Users, IC Card :5000 |
Average Recognition Time: |
Lris Recognition 1s |
Core Algorithm Performance: |
( GB/T20979-2019) |
Lris Image Quality: |
GB/T33767.6-2018 |
Communication Mode: |
TCP/IPRS-485 |
Operating Ambient Temperature: |
-10C~55°C |
Working Ambient Humidity: |
Working Ambient Humidity |
Product Model: |
D20 |
Product Size (L*W*H): |
140*318*56mm |
Display Screen: |
4 Inches, Resolution 800*480pixel |
Camera: |
Iris :2MP |
Working Distance: |
Lris:35~50cm |
Identification Mode: |
Iris, IC Card, Password |
Adaptive Height Range: |
1.5~1.8m |
User Capacity: |
Iris :2000 Users, IC Card :5000 |
Average Recognition Time: |
Lris Recognition 1s |
Core Algorithm Performance: |
( GB/T20979-2019) |
Lris Image Quality: |
GB/T33767.6-2018 |
Communication Mode: |
TCP/IPRS-485 |
Operating Ambient Temperature: |
-10C~55°C |
Working Ambient Humidity: |
Working Ambient Humidity |
Description

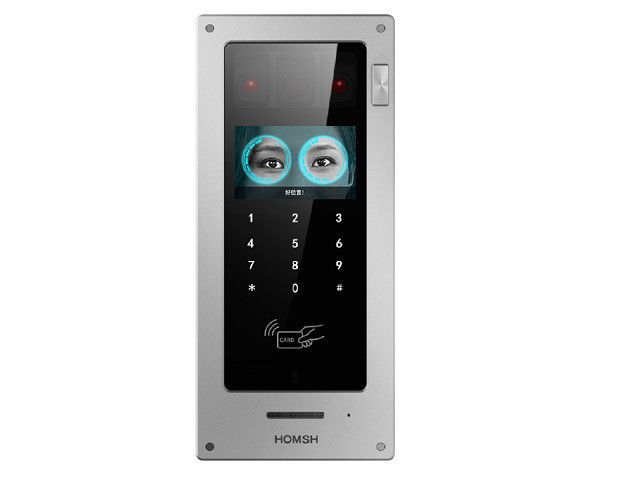

Binocular iris access control device D20 is an access control device that can realize multiple authentication methods including iris, IC card and password. Support RS-485, TCP/IP and access control management platform for data communication to realize unified management of equipment. The iris recognition angle of this product can be adjusted to suit users of different heights. The combination of 4-inch full-color display screen, all-metal shell and front tempered glass makes the product not only more atmospheric but also more durable, providing users with strong security Assure.
Features
1. Support multiple door opening methods such as iris, CPU card and password;
2. Both binocular and any monocular can be recognized;
3. Long-distance identification, using distance (35-50cm);
4. 4-inch color screen, real-time display of iris image, auxiliary alignment recognition;
5. Iris local fast recognition, even in the case of large-scale crowds, the recognition time is less than 1s;
6. The lens angle can be adjusted in two gears up and down to adapt to people of different heights;
7. Support abnormal alarm and tamper alarm ;
8. Support 500,000 offline record storage;
Specification
|
Product model |
D20 |
|
Product size (L*W*H) |
140*318*56mm |
|
Display screen |
|
| Camera |
|
| Working distance | Iris:35~50cm |
| Identification mode |
|
| Adaptive height range | 1.5~1.8m |
| User capacity |
|
| Average recognition time | Iris recognition≤1s |
| False Acceptance Rate(FAR) | 10-7 |
| False Rejection Rate(FRR) | 10-3 |
| Infrared safety standard | Compliant with American standard ANSI RP-27.1-96 compliant with EU standard IEC/EN62471 |
| Core algorithm performance | ( GB/T20979-2019 ) |
| Iris image quality | GB/T33767.6-2018 |
| Communication mode | TCP/IP,RS-485 |
|
DC/RJ45/RS-485/ Wiegand output/Door lock/door switch /USB2.0 |
| Operating ambient temperature | -10C~55°C |
| Working ambient humidity | 0 to 93%RH, non-condensing |
|
Working environment light intensity |
0~6000Lux(non-direct sunlight) |
| Supply voltage | DC 12V@2A |
| Mode of use |
Wall mounting |
| Operation prompt |
LCD prompt, voice wizard |
Application
D20 can be widely used in smart residential areas, intelligent buildings, public security, finance, medical care, education and other fields of access control security control and identity recognition.
