| Place of Origin: | China |
|---|---|
| Brand Name: | HOMSH |
| Certification: | ISO9001 |
| Model Number: | G32e |
| Minimum Order Quantity: | 1 |
| Price: | Negotiated |
| Delivery Time: | 5-8 work day |
| Payment Terms: | L/C, T/T |
| Equipment Size: | 260mm*206mm*105mm | Display Screen: | 8 Inch 1280*800 |
|---|---|---|---|
| Iris Camera: | Dual Lens,20x Optical Zoom | Structured Light Camera: | Depth Image: 640x400@30FPS / Color Image 1280*720@7FPS |
| Recognition Distance: | 35cm~100cm | Native Support For Iris Capacity: | 2000 People |
| Focus Method: | Auto Focus | Infrared Lighting: | 850nm Infrared LED Lights On Both Sides |
| Product Name: | Iris Automated Border Control E-gates | Operating Temperature: | 0~55°C |
| Security: | High | Speed: | High |
| Highlight: | 2000 People Iris Border Control,Iris Border Control G32e,2000 People automated border control |
||

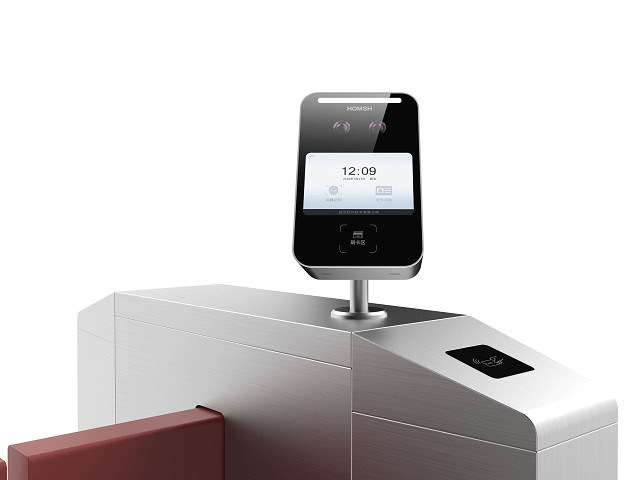

High-Security Iris Automated Border Control E-gates Automated Border Control System
Description
The iris channel machine is based on iris recognition technology. When performing iris identity verification, it compares the iris data of the person being verified with the iris data of the entire database to accurately determine the identity information of the person being verified. During the iris identity verification, if the person being verified is found to be a key focus person, the system will automatically alarm and record the alarm information data. Equipped with automatic zoom technology, the equipment can quickly and accurately identify any position within the range of 35cm~100cm. It is suitable for deployment at important checkpoints such as highway checkpoints, border inspections, customs, high-speed rail stations, and airports for identity verification and traffic control.
Features
1. Equipped with Rainbow Technology's independent iris recognition algorithm Phaselis™ and the world's first iris recognition hard-core dedicated smart chip Qianxin™; (invention patent number ZL 201410430535.2)
2. The equipment complies with the requirements of the "Technical Requirements for Iris Collection Equipment Used in Criminal Investigation Services" (used for the construction of the iris database of the ten-million-level criminal special subsystem);
3. With liveness detection, it can prevent prosthetic attacks in the form of iris photos and iris videos;
4. Adopt automatic zoom technology to realize rapid iris recognition in the range of 35~100cm;
5. Average recognition time <2s;
6. Adopt high-performance 6-core ARM chip and integrate Linux system;
7. Using professional ID three-dimensional modeling, industrial design, strict high and low temperature environment test, stable and reliable performance;
8. Adopt industrial-grade 8-inch IPS LCD screen, professional UI design and intelligent voice prompts, display the human eye frame, and facilitate user calibration;
9. The device supports data network upload, continuous transmission when the network is disconnected, and supports receiving data sent by the B/S cloud platform;
10. Support access to tens of millions of iris recognition databases for accurate and fast identity confirmation;
Specifications
|
Equipment size |
260mm*206mm*105mm |
|
display screen |
8 inch 1280*800 |
|
iris camera |
Dual lens, 20x optical zoom |
|
Structured Light Camera |
Depth image: 640x400@30FPS / Color image: 1280*720@7FPS |
|
recognition distance |
35cm~100cm |
|
Native support for iris capacity |
2000 people |
|
focus method |
auto focus |
|
Infrared lighting |
850nm infrared LED lights on both sides |
|
Infrared Safety Standard |
Conforms to the American standard ANSI RP-27.1-96 Conforms to the highest European standard IEC/EN62471 |
|
iris image format |
BMP |
|
Iris image size |
The monocular iris image is 640 pixels wide and 480 pixels high |
|
Iris Image Quality |
Comply with ISO/IEC-19794-6:2011 and GB/T 26237.6-2014 standards Meet the requirements of "Technical Requirements for Iris Collection Equipment Used in Criminal Investigation Business" (used for the construction of iris database of tens of millions of criminal special subsystems) |
|
communication method |
TCP/IP, RS-485, Wiegand |
|
Access control interface |
Door lock/door sensor/exit switch |
|
Operating temperature |
0~55℃ |
|
power supply |
24VDC, 5A |
Applicable field
G32e is widely suitable for road checkpoints, border inspections, customs, airports, high-speed rail stations, prisons, coal mines and other scenarios.
