Product Details
Place of Origin: China
Brand Name: HOMSH
Certification: ISO9001
Model Number: D36
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiated
Delivery Time: 5-8 work day
Payment Terms: T/T
Communication Mode: |
TCP/IP、WIFI |
Operating Ambient Temperature: |
-10°C~55C |
Working Environment Light Intensity: |
0~6000Lux(not Direct Sunlight |
Mode Of Use: |
Wall-mounted Or Benchtop Placement |
Supply Voltage: |
DC 12V2A |
User Capacity: |
Lris :500-10K People |
Product Model: |
D36-500/1K/2K/5K/10K |
(L*W*H): |
188.5*147*54.5mm |
Display Screen: |
7"HD LCD Screen (with Touch Screen) |
Camera: |
Lris :8MP |
Working Distance: |
Lris :35~60cm |
Adaptive Height Range: |
1.4~1.9m |
Communication Mode: |
TCP/IP、WIFI |
Operating Ambient Temperature: |
-10°C~55C |
Working Environment Light Intensity: |
0~6000Lux(not Direct Sunlight |
Mode Of Use: |
Wall-mounted Or Benchtop Placement |
Supply Voltage: |
DC 12V2A |
User Capacity: |
Lris :500-10K People |
Product Model: |
D36-500/1K/2K/5K/10K |
(L*W*H): |
188.5*147*54.5mm |
Display Screen: |
7"HD LCD Screen (with Touch Screen) |
Camera: |
Lris :8MP |
Working Distance: |
Lris :35~60cm |
Adaptive Height Range: |
1.4~1.9m |
Description

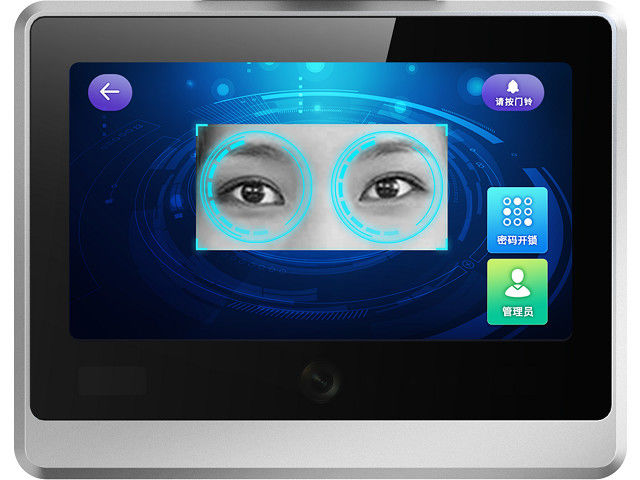

An advanced iris and facial recognition access control system is in place, boasting outstanding performance in its iris recognition algorithm. Equipped with a 7-inch high-definition touch screen and an LCD real-time feedback auxiliary focus mode, this system can be widely deployed both indoors and outdoors, swiftly and reliably identifying individuals. It remains unaffected by factors such as wearing masks or glasses. This system significantly enhances the user experience, making it suitable for personnel access management in various settings such as corporate buildings, schools, communities, parks, venues, hospitals, factories, and more. This innovative iris and facial recognition access control solution revolutionizes security management in modern society, ensuring efficient and secure personnel entry and exit.
Features
1, the use of 7 inch touch display, LCD real-time feedback auxiliary focusing mode;
2, iris local rapid recognition, the average recognition time ≤1s;
3, the maximum number of support users 5000;
4, the recognition distance is far, the iris recognition distance is 35~60cm;
5, the lens tilt Angle can be manually adjusted up and down, the tilt Angle is greater than 52°, perfect to adapt to different user heights;
6, lens auto focus, automatic recognition to capture the user's eye, easy to use;
Specification
| Product model | D36 |
| (L*W*H) | 188.5*147*54.5mm |
| Display screen | 7 "HD LCD screen (with touch screen) |
| camera | Iris :8MP |
| Working distance | Iris :35~60cm |
| Identification mode | Iris, password |
| Adaptive height range | 1.4~1.9m |
| User capacity | Iris :5000 people |
| Average recognition time | Iris recognition ≤1s |
| False acceptance rate ( FAR ) | 10-7 |
| False Rejection Rate (FRR) | 10-3 |
| Infrared safety standard | Compliant with American standard ANSI RP-271-96 compliant with EU standard IEC/EN62471 |
| Core algorithm performance | Meet the national standard "information security technology iris recognition system technical requirements. ( GB/T20979-2019 ) |
| Iris image quality | Comply with the national standard GB/T33767.6-2018 iris image data |
| Communication mode | TCP/IP,WIFI |
| Other interface | DC/R145/RS-232/RS-485/ Weigen IO/ Door lock/Door switch /USB2.0 |
| Operating ambient temperature | -10°C~55C |
| Working ambient humidity | 0 ~ 93%RH, non-condensing |
| Working environment light intensity | 0~6000Lux(not direct sunlight |
| Operation prompt | LCD prompt, voice wizard |
| Mode of use | Wall-mounted or benchtop placement |
| Supply voltage | DC 12V2A |
Application
D36 can be widely used in enterprise buildings, schools, communities, parks, venues, hospitals, factories and other fields of access control and attendance system.
