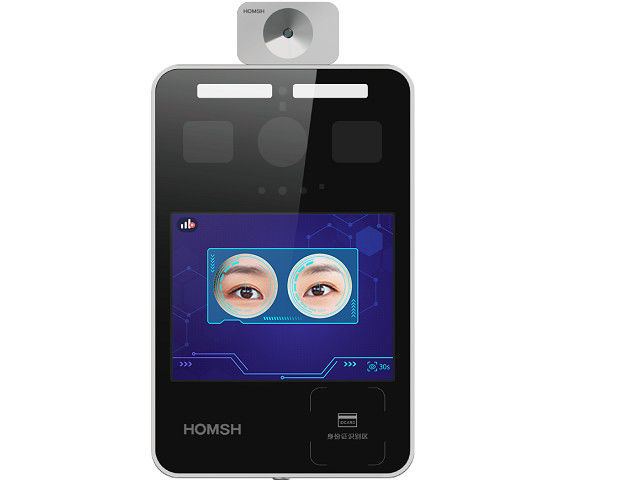

8 Inch Iris Border Control With Thermal Imaging Temperature Measurement

Product Details

Place of Origin: China

Brand Name: HOMSH

Certification: ISO9001

Model Number: G32bT

Payment & Shipping Terms

Delivery Time: 5-8 work day

Payment Terms: T/T

Get Best Price
Highlight:

8 Inch Iris Border Control

,

Iris Border Control Thermal Imaging

Product Dimensions (L*W*H):
300*190*57mm
Display Screen:
8-inch Screen, 1024*768 Pixel Resolution
Operating Distance:
Iris: 30-90cm, Face: 30-100cm
Average Recognition Time:
Iris: ≤1.5s, Face: ≤1.5s
Temperature Measurement Range:
30-90cm
Temperature Measurement Accuracy:
±0.3°C
Operating Temperature Range:
-10˚C To 55˚C
Humidity:
0 ~ 90% RH, Non-condensing
Product Dimensions (L*W*H):
300*190*57mm
Display Screen:
8-inch Screen, 1024*768 Pixel Resolution
Operating Distance:
Iris: 30-90cm, Face: 30-100cm
Average Recognition Time:
Iris: ≤1.5s, Face: ≤1.5s
Temperature Measurement Range:
30-90cm
Temperature Measurement Accuracy:
±0.3°C
Operating Temperature Range:
-10˚C To 55˚C
Humidity:
0 ~ 90% RH, Non-condensing
8 Inch Iris Border Control With Thermal Imaging Temperature Measurement

Iris Recognition Based Access Control With Thermal Imaging Temperature Measurement 8 Inch Lcd Screen

Description



G32bT is based on iris recognition technology as the core. When iris identity verification is carried out, the iris picture of the verified person will be compared with the whole library. If the comparison passes, the gate will automatically open, and if it does not pass, the gate will not open and send alarm information to the background. The device can check the iris identity of passengers within a distance of about 30~90cm, and control the passage of personnel.

G32bT can quickly form intelligent temperature measurement iris verification terminal. It can achieve non-contact and long-distance accurate identification of personnel, and is not affected by wearing glasses, wearing masks, and covering the head. When the iris recognition is successful and the body temperature is normal, the gate is controlled to open the door; if the body temperature is abnormal, the door is not opened, and the abnormal body temperature alarm is reported. The identity information and temperature data information of the personnel are automatically uploaded to the background service system. The intelligent terminal can effectively monitor the movement of people with abnormal fever caused by the novel coronavirus pneumonia, and can be widely used in the personnel access management of parks, venues, hospitals, factories, enterprise buildings and other places.



Features



  • Equipped with iris recognition technology autonomous iris recognition algorithm Phaselris™ and the world's first hardcore dedicated iris recognition intelligent chip Qianxin™;
  • Automatic zoom lens is used to realize rapid iris recognition in the maximum range of 30~90cm;
  • Using professional ID three-dimensional modeling, industrial design, strict high and low temperature environmental testing, stable and reliable performance;
  • 8 inch LCD screen, professional UI design and operation tips, good experience;
  • The device supports data network upload, off-network continued transmission, the device side comparison results and captured face photos back to the background management side in real time for saving; Support to receive data from B/S cloud platform;
  • Support the selection of human body temperature measurement components (software needs to be upgraded to the special version of temperature measurement), to achieve non-contact, long-distance human body temperature measurement and accurate identification, and is not affected by wearing glasses, wearing masks, and covering the head;
  • Support the selection of human body temperature components return temperature value display in the UI interface, abnormal body temperature alarm and other functions, and the identification record of the passer and body temperature information data for unified upload;
  • 304 stainless steel plate and customized quick-pass door movement, stable performance and easy maintenance, riot force into the gate, is forced to open or open can achieve automatic reset, an average trouble-free operation of 5 million times;
  • Multiple groups of infrared targeting devices, through complex logic judgment, with strong anti-tailgating analysis ability, and the use of high-precision light curtain, detection spacing can be less than 5 cm;



Specification

Specification Details
Product Model G32bT
Product Dimensions (L*W*H)

300*190*57mm

Display Screen 8-inch screen, 1024*768 pixel resolution
Camera Iris: 2MP with 10x optical zoom, Face: 2MP
ID Card Reader (Optional) Built-in ID card reader, card reading time <1s, reading distance: 0-3cm
QR Code (Optional) Supports 1D and 2D barcodes







Speed Gate (Optional)

Dimensions: 1600*200*1300mm,

304 brushed stainless steel body,

brushless motor,

customizable passage width (600-800mm),

control via switch signal or 458 protocol,

static power consumption 40W,

dynamic power consumption 90W

Operating Distance Iris: 30-90cm, Face: 30-100cm
Recognition Methods Iris, Face (Optional), ID Verification (Optional), QR Code Scanning (Optional)
User Capacity Iris: 10,000 people, Face: 10,000 people
Average Recognition Time

Iris: ≤1.5s, Face: ≤1.5s

Temperature Measurement Range 30-90cm
Temperature Measurement Accuracy ±0.3°C
False Acceptance Rate (FAR) Iris: 10-7, Face: 10-4
False Rejection Rate (FRR) Iris: 10-3, Face: 10-3
Infrared Safety Standards Complies with ANSI RP-27.1-96 (US) and IEC/EN62471 (EU)
Core Algorithm Performance Complies with GB/T20979-2019 "Information Security Technology - Iris Recognition System Technical Requirements"
Iris Image Quality Complies with national standard GB/T33767.6-2018 for iris image data
Communication Method TCP/IP
Other Interfaces DC/RJ45/USB2.0
Operating Temperature Range -10˚C to 55˚C
Humidity 0 ~ 90% RH, non-condensing
Ambient Light Intensity 0 ~ 6000Lux (non-direct sunlight)
Power Supply Voltage DC 12V@6.67A
Installation Methods Column Mounting, Gate Installation
Operation Prompts LCD Screen Prompts, Voice Guidance



Application



It is mainly used in airports, high-speed railways, subway stations, customs, border guards, entry and exit, high-end residential areas, schools, CBD, office buildings, etc.
