Product Details
Place of Origin: China
Brand Name: HOMSH
Certification: ISO9001
Model Number: G36T
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiated
Delivery Time: 5-8 work day
Payment Terms: T/T
Power Supply Voltage: |
DC 12V@3A |
Operating Light Intensity: |
0～6000Lux (non-direct Sunlight) |
Communication Methods: |
TCP/IP, WIFI |
Temperature Measurement Accuracy: |
±0.3℃ |
Temperature Measurement Range: |
20～60cm |
Height Range: |
1.4～1.9m |
Dimensions (L*W*H): |
132*253*566mm |
Display Screen: |
7-inch HD LCD Screen (with Touch Screen) |
Power Supply Voltage: |
DC 12V@3A |
Operating Light Intensity: |
0～6000Lux (non-direct Sunlight) |
Communication Methods: |
TCP/IP, WIFI |
Temperature Measurement Accuracy: |
±0.3℃ |
Temperature Measurement Range: |
20～60cm |
Height Range: |
1.4～1.9m |
Dimensions (L*W*H): |
132*253*566mm |
Display Screen: |
7-inch HD LCD Screen (with Touch Screen) |

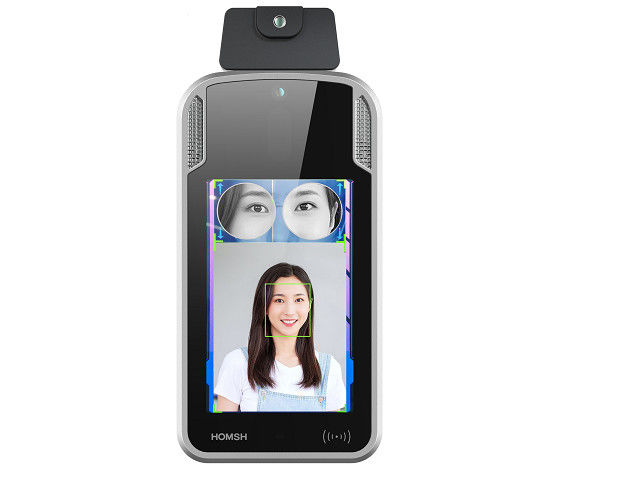

G36T: Iris & Temperature Dual Recognition Channel Temperature Measurement Accuracy Channel Machine
Description
G36T is a non-contact iris temperature measurement channel machine, support iris, face, password, card multiple authentication methods, using excellent performance iris recognition algorithm and face recognition algorithm, 7 inch HD touch display, LCD real-time feedback auxiliary focusing mode, recognition distance, wide range, indoor and outdoor can be recognized, while not affected by wearing masks, glasses, etc. Let users get excellent experience.
Human infrared temperature measurement components can be selected to achieve non-contact and remote accurate identification of personnel. When the iris recognition is successful and the body temperature is normal, the door lock is controlled and the door is opened. If the body temperature is abnormal, the door is not opened, and the abnormal body temperature alarm is reported. The identity information and temperature data information of personnel are automatically uploaded to the background service system to effectively monitor the passage of persons with abnormal fever. Can be widely used in enterprise buildings, schools, communities, parks, venues, hospitals, factories and other places of personnel access management.
Functional
1. Iris and temperature measurement dual recognition, non-contact, meet the requirements of epidemic prevention and control can open the passage;
2. Adopt self-developed environmental temperature calibration algorithm, multi-point temperature sampling on human face, temperature measurement speed < 0.5s, temperature measurement accuracy ±0.3℃;
3. Support infrared body temperature detection module return temperature value display in the UI interface, abnormal body temperature alarm and other functions;
4. Use 7-inch touch display, LCD real-time feedback auxiliary focusing mode;
5. Iris local fast recognition, average recognition time ≤1s;
6. Iris supports a maximum number of 20,000 users; The maximum number of users supported by face is 10,000;
7. The recognition distance is far, the iris recognition distance is 35~60cm;
8. Lens auto focus, auto capture, easy to use;
9. Support automatic pitching, perfect to adapt to different user heights;
Specification
| Model | G36T |
|---|---|
| Dimensions (L*W*H) | 132*253*566mm |
| Display Screen | 7-inch HD LCD screen (with touch screen) |
| Camera | Iris: 1300MP, Facial Recognition: 2MP |
| Working Distance | Iris: 35～60cm, Facial Recognition: 10~80cm |
| Recognition Methods | Iris, Facial Recognition, Password |
| Height Range | 1.4～1.9m |
| User Capacity | Iris: 20,000 persons, Facial Recognition: 10,000 persons |
| Average Recognition Time | Iris: ≤1s, Facial Recognition: ≤1s |
| False Acceptance Rate (FAR) | 10-7 |
| False Rejection Rate (FRR) | 10-3 |
| Temperature Measurement Range | 20～60cm |
| Temperature Measurement Accuracy | ±0.3℃ |
| Infrared Safety Standards | Complies with ANSI RP-27.1-96 (USA) and IEC/EN62471 (EU) |
| Core Algorithm Performance | Complies with the National Standard GB/T33767.6-2018 for Iris Image Data |
| Communication Methods | TCP/IP, WIFI |
| Other Interfaces | DC/RJ45/Wiegand IO/Door Lock/Exit Button/USB2.0/Doorbell Output/Audio Output |
| Operating Temperature | -10˚C～55˚C |
| Operating Humidity | 0～93%RH (non-condensing) |
| Operating Light Intensity | 0～6000Lux (non-direct sunlight) |
| Power Supply Voltage | DC 12V@3A |
| Installation Method | Wall-mounted or Desktop Placement |
| Operation Prompt | LCD screen prompt, Voice guidance |
Application
G36T can be widely used in airports, high-speed railways, subway stations, customs, border defense, immigration, high-end residential areas, schools, CBD, office buildings and so on.
