60 ~ 160 pixels Iris Chip 768x768 pixels High Speed Data Processing

Product Description:

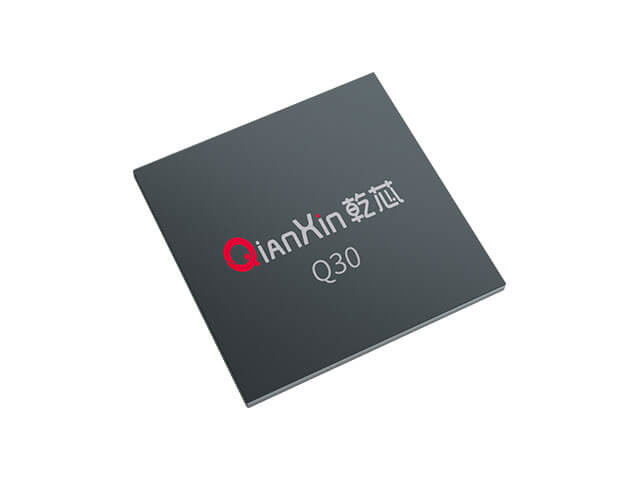

The Q30 chip is based on PhaseIris ™ third generation Iris core engine technology, providing a single chip solution for iris recognition and comparison applications. The Q30 provides superior iris coding and comparison computing capabilities.

Iris Chip is a revolutionary biometric recognition chip that offers a secure and reliable way to identify and authenticate a person. With a combination of Wi-Fi, Bluetooth and Zigbee connectivity, the Iris Chip offers an unrivaled level of security and convenience. It is powered by a 3V-6V power source and features 2MB Flash storage. Its size is only 45mm x 45mm, making it the perfect solution for almost any application. The Iris Chip incorporates advanced iris recognition technology to provide fast and accurate identification and authentication. It is the perfect choice for any iris recognition system and provides an unparalleled level of security and convenience.

Features:

• PhaseIris Gen3 Iris core acceleration technology, speed priority mode;
• Provide GPIO/IIC/Master FIFO interface;
• Support 2 parallel port camera input, maximum support 5 million pixels;
• ISP integrated support for automatic exposure, channel balance, image cropping functions;
• Support QSPI Flash read template comparison, maximum 7000 templates /s;
• When the external USB2.0 interface is connected, real-time transmission template comparison is supported, with a maximum of 14000 templates /s.
• When the external USB3.0 interface is connected, the real-time transmission template comparison is supported, and the maximum is 40000 templates /s.
• Support DVP digital image output, maximum 2 million pixels.
• Master FIFO interface:
• Support external bridge USB master, such as USB68013, USB3014/2014, FT2232/FT600;
• Support external MCU/ARM control;
• The maximum frequency of the Master FIFO interface is 100MHz.

Technical Parameters:

Applications:

It can be applied to large-capacity access control, small-scale iris comparison server, etc.

HOMSH, a Chinese brand certified by ISO9001, offers its Iris Chip, a biometric identification chip with a minimum order quantity of 1. It features a size of 45mm X 45mm, a 256KB SRAM memory, a 128x128 OLED display, and an ARM Cortex-M4 processor. Its delivery time is 5-9 days and it supports payment via T/T.

The Iris Chip is an ideal solution for biometric recognition and authentication. It is particularly useful in secure access control and identity management. It is widely used in various fields, such as banking, government, military, police, healthcare, and airport security. It is also suitable for physical access control, computer access control, travel and transit management, and time and attendance systems.

The Iris Chip is designed to provide reliable and accurate biometric identification and authentication. Its advanced technology guarantees high accuracy and security. It is also durable and low-maintenance for long-term use. The Iris Chip is highly cost-efficient as it is easy to install and requires minimal resources for operation.

Customization:

Brand Name: HOMSH

Place of Origin: China

Certification: ISO9001

Minimum Order Quantity: 1

Delivery Time: 5-9day

Payment Terms: T/T

Product Name: Iris Chip

Iris Identification Chip, Iris Recognition Chip, Biometric Identification Chip

FAQ:

• Q: What is Iris Chip?
• A: Iris Chip is a smart chip produced by HOMSH, a brand from China with ISO9001 certification.

• Q: What is the minimum order quantity for Iris Chip?
• A: The minimum order quantity for Iris Chip is 1.

• Q: What are the payment terms for Iris Chip?
• A: The payment terms for Iris Chip is T/T.

• Q: How long is the delivery time for Iris Chip?
• A: The delivery time for Iris Chip is 5-9 days.

• Q: Where is Iris Chip produced?
• A: Iris Chip is produced in China.
