Product Details
Place of Origin: China
Brand Name: HOMSH
Certification: ISO9001
Model Number: ST-E300
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiated
Delivery Time: 5-8 work day
Payment Terms: T/T
Product Name: |
7-inch Iris Face Recognition Terminal |
Size: |
7-inch IPS Full Screen |
Brightness: |
450cd/m2 |
Facial Recognition: |
Facial Recognition Distance: 0.3-2m, Recognition Speed ≤ 0.2 Seconds |
Power Supply: |
DC12V±30% |
Power Consumption: |
≤15W |
Operating Environment: |
Temperature: -30℃ To 70℃, Humidity: 10% To 90% RH |
Weight: |
Approximately 1500g |
Dimensions (mm): |
Length: 247mm, Width: 126.9mm, Thickness: 26.6mm (excluding Bracket) |
Operating Modes: |
Supports Online And Offline Operation |
Product Name: |
7-inch Iris Face Recognition Terminal |
Size: |
7-inch IPS Full Screen |
Brightness: |
450cd/m2 |
Facial Recognition: |
Facial Recognition Distance: 0.3-2m, Recognition Speed ≤ 0.2 Seconds |
Power Supply: |
DC12V±30% |
Power Consumption: |
≤15W |
Operating Environment: |
Temperature: -30℃ To 70℃, Humidity: 10% To 90% RH |
Weight: |
Approximately 1500g |
Dimensions (mm): |
Length: 247mm, Width: 126.9mm, Thickness: 26.6mm (excluding Bracket) |
Operating Modes: |
Supports Online And Offline Operation |

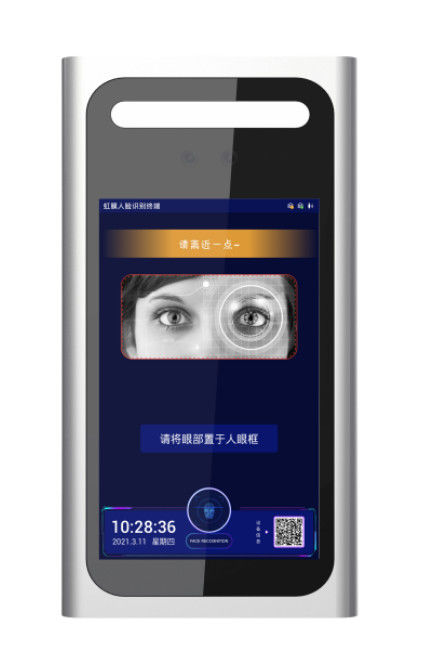

7-Inch Iris Face Recognition Terminal With Multi-Modal Biometric Recognition
Support a variety of iris, face authentication access control equipment. Iris recognition technology is based on the iris in the eye for identity recognition, with unique, stable and non-contact characteristics, through iris recognition to accurately determine the true identity of passengers
Iris Face Recognition Terminal of Product characteristics
Iris Face Recognition Terminal of specification
| Basic Information | |
|---|---|
| Product Name | 7-inch Iris Face Recognition Terminal |
| Operating System | Embedded Linux System |
| Processor | Quad-core A55 @ 1.5GHz High-Performance CPU |
| Display Screen | |
|---|---|
| Size | 7-inch IPS Full Screen |
| Brightness | 450cd/m2 |
| Resolution | 1024×600 |
| Camera | |
|---|---|
| Resolution | 200W pixels (1920×1080) |
| Sensor | 1/2.7-inch Low-Light CMOS Sensor |
| Iris Lens | High-Definition Fixed Focus 12mm |
| Visible Light Lens | High-Definition Fixed Focus 4mm |
| White Balance | Auto, Low Color Temperature, High Color Temperature, Manual |
| Wide Dynamic Range | Digital Wide Dynamic Range and True Wide Dynamic Range |
| Illumination | RGB (Natural Light) and Infrared Light |
| Smart Recognition | |
|---|---|
| Recognition Methods | Iris, Facial Recognition |
| Iris Recognition | Single/Dual Eye Recognition, Recognition Distance: 0.5m, Recognition Width: 0-20cm, Iris Speed ≤ 1 second |
| Facial Recognition | Facial Recognition Distance: 0.3-2m, Recognition Speed ≤ 0.2 seconds |
| Storage Capacity | 30,000 pairs of iris, 30,000 facial images, 150,000 records |
| Liveness Detection | Supported |
| Parameter Settings | Visitor Management, Permission Groups, Access Time, Black/White Lists, Recognition Parameters, Image Settings, Information Display, etc. |
| Alarm Management | Blacklist Alarm, Door Timeout Alarm |
| Operating Modes | Supports Online and Offline Operation |
| Interfaces | |
|---|---|
| Communication Method | Wired |
| Network Interface | 1 x 10/100M Adaptive Network, RJ45 Interface |
| Door Lock Interface | Door Open Signal, Door Magnetic Status, Switch Button |
| Wiegand Interface | 3 lines (D0, D1, GND) supporting Wiegand 26, 34 |
| Serial Interface | 1 x RS232 Serial Port RX, TX |
| Reset Interface | Supported |
| Alarm Interface | 1 x Alarm Input |
| Audio Interface | Built-in Speaker and 1 x 3.5mm Standard Audio Output Interface |
| Platform Protocols | Active Registration, SDK, WebSocket, HTTP |
| General Parameters | |
|---|---|
| Power Supply | DC12V±30% |
| Power Consumption | ≤15W |
| Operating Environment | Temperature: -30℃ to 70℃, Humidity: 10% to 90% RH |
| Protection Level | IP67 Protection Level, IK08 Anti-riot Level, ESD: Contact ±6KV, Air ±8KV |
| Installation Method | Optional Turnstile/Wall Mount, Supports 86 Box Installation, Optional Sunshade |
| Dimensions (mm) | Length: 247mm, Width: 126.9mm, Thickness: 26.6mm (excluding bracket) |
| Weight | Approximately 1.5kg |
Iris Face Recognition Terminal of Application
It is mainly deployed at the entrance of important meetings, border checkpoints, ports, airports, security checkpoints, finance, detention centers, mine entrances and exits, and places with high confidentiality needs.
