Product Details
Place of Origin: China
Brand Name: EyeCatch
Certification: ISO9001
Model Number: D50
Payment & Shipping Terms
Minimum Order Quantity: 10
Price: Negotiable
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 500pcs/month
General Description:

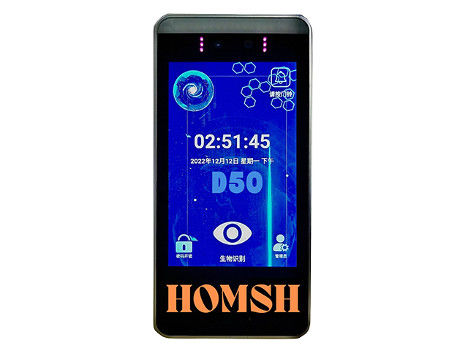

The D50 is a multi-biometric intelligent terminal developed by Hongshi Technology, combining the advantages of iris, facial, fingerprint, and NFC card authentication technologies. It can be used in scenarios requiring identity verification, such as access control, attendance tracking, and gate passage, particularly in industries with high security demands, including public security, law enforcement, finance, and mining.
Product Features:
• Multi-biometric recognition: This product supports multiple identity verification methods including iris, facial, fingerprint, and NFC card recognition.
• Iris recognition distance: The recognition distance is between 35CM and 105CM, offering a long range, wide coverage, and good user experience.
• Iris recognition: Uses an LCD real-time feedback auxiliary focusing mode, allowing users to see exactly what is recognized.
• Iris lens: The lens automatically rotates, with a tilt angle greater than 80 degrees, allowing it to adapt to people of different heights automatically.
• Glasses, sunglasses, masks, goggles, etc.: Users wearing these accessories will not affect the iris recognition.
• Works in various lighting conditions: Recognition is not affected by night, sunlight, darkness, black face, face paint, or even twins.
• Live body recognition: The system includes both facial and iris live body recognition, preventing recognition through photos, videos, or prosthetics.
• Contactless recognition: No physical contact is needed, avoiding the spread of germs, ensuring hygiene and cleanliness.
Product Specifications:
|
Item |
Specification |
|
Operation Mode |
Stand-alone/Network mode |
|
Authentication Method |
Iris recognition/Face recognition/Fingerprint recognition/NFC card/Password etc. |
|
Main CPU |
Quad-core 64-bit Cortex-A55, max frequency 2.0GHz |
|
Main GPU |
ARM G52 2EE/Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
|
Main NPU |
Supports 0.8T computation power |
|
Main Memory |
2GB + 16GB |
|
Operating System |
Android System Android 11 |
|
Max Supported Iris Count |
20,000 people |
|
Max Supported Face Count |
10,000 people |
|
Max Supported Fingerprint Count |
500 people |
|
Max Supported NFC Card Count |
10,000 people |
|
Log Records |
100,000 records |
|
FAR Error Rate |
< 5 millionth |
|
FRR Error Rate |
< 1% |
|
Display |
8-inch HD LCD screen (with touchscreen) |
|
Alignment Mode |
Motor-driven lens automatically searches for the eye |
|
Capture Mode |
Non-contact automatic trigger |
|
Communication Interface |
1 USB (for copying attendance data); 1 Wiegand output; RJ45 supports 1 100Mbps Ethernet |
|
Average Registration Time |
< 3 seconds (for both eyes) |
|
Average Recognition Time |
< 1 second (for both eyes) |
|
Iris Pitch Angle |
Downward 25 degrees, upward 55 degrees |
|
Recognition Distance |
35-105 cm |
|
Operating Temperature |
-20 to 60°C |
|
Operating Humidity |
20% to 90% |
|
Installation Method |
Wall-mounted or desktop placement |
|
Installation Height |
Recommended height: 120 cm to 150 cm |
|
Weight |
1300g |
|
Power Supply |
DC 12V/3A |
|
Dimensions |
272mm x 133mm x 38.5mm |
|
Infrared Light Standard |
Complies with the highest European standard EN62471, US highest standard ANSI RP-27.1-96 |
|
Other |
Tamper-proof design |
Iris Recognition Module Electrical Specifications:
|
Item |
Specification |
|
Iris Module Resolution |
800MP |
|
Iris Lens Focal Length |
16mm AF auto focus |
|
Face Module Resolution |
200mp |
|
Face Lens Focal Length |
3.2mm fixed focus |
|
Fingerprint Module Type |
NEL100 semiconductor sensor |
|
Fingerprint Module Resolution |
192*192 pixels |
|
NFC Module |
Supports ISO14443 TYPE A standard, Mifare standard cards |
|
NFC Module RF |
13.56MHz, up to 7cm reading distance |
Application Scenarios:
1. Office Building Access Control
2. Data Center Access Control
3. High-End Residential Community Access Control
4. Bank Vault and VIP Room Access Control
5. Airport Security Check and Boarding Gate Verification
6. Hospital Sensitive Area (e.g., Operating Rooms, Drug Storage Areas) Access Control
7. Military or Government Facility Security Zones
8. High-Security Laboratories or Research and Development Center Access Control
