Product Details
Place of Origin: China
Brand Name: HOMSH
Certification: ISO9001
Model Number: MD31
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiated
Delivery Time: 5-8 work day
Payment Terms: T/T
Connection: |
USB 2.0 |
Power: |
<4W |
Product Dimensions(L X W X H): |
80mm*25mm*35mm |
Storage Capacity: |
20000 Templates/10000 Users Iris Recognition Module |
Identification Method: |
Any Single Eye/both Eyes |
Imaging Band: |
850nm |
Work Light Intensity: |
0~6000 Lux |
Operating Temperature: |
0℃～45℃/-10℃～55℃ |
Working Humidity: |
0 – 93% RH |
Connection: |
USB 2.0 |
Power: |
<4W |
Product Dimensions(L X W X H): |
80mm*25mm*35mm |
Storage Capacity: |
20000 Templates/10000 Users Iris Recognition Module |
Identification Method: |
Any Single Eye/both Eyes |
Imaging Band: |
850nm |
Work Light Intensity: |
0~6000 Lux |
Operating Temperature: |
0℃～45℃/-10℃～55℃ |
Working Humidity: |
0 – 93% RH |
Iris Collecting Recognition Module Storage Capacity 10000 users 10-7 FAR & 10-3 FRR For Access Control Applications
Description

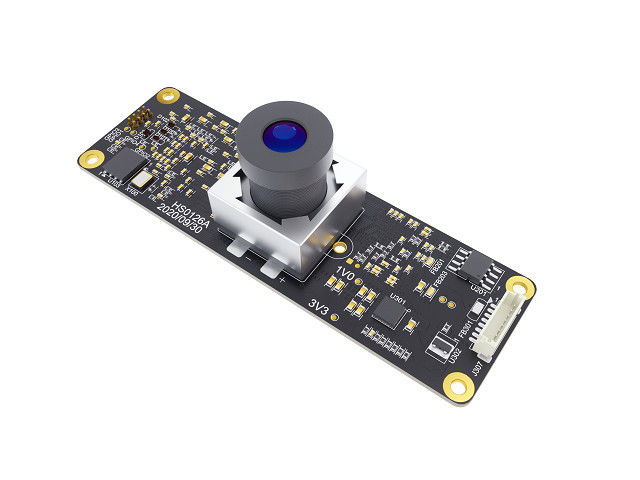

MD31 Iris module is a compact design of USB iris coding recognition module, using the third generation iris recognition algorithm Phaseiris™3.0 iris recognition technology independently developed by iris recognition technology, can be adapted to 350mm~500mm recognition range; MD31 module supports iris collection and comparison function, and also supports network comparison; MD31 module compact size (size: L80mm x W24mm x H25mm), simple integration, can be widely used in smart door locks, smart cabinets, access control and other intelligent terminal equipment.
Functional characteristics
1, the module adopts the third generation of hard accounting method Phaseiris™3.0 iris recognition technology, which has a more accurate, faster and safer iris recognition experience;
2, algorithm accuracy: error rejection rate (FRR) 10-3, error acceptance rate (FAR) 10-7;
3, high-performance camera module, the acquisition of images to meet the requirements of iris library;
4, large recognition range 370mm~500mm, optional VCM lens;
5, support 640x480 video image output;
6, support offline and online iris comparison function;
7. Support image data comparison and template data comparison;
8, the module size is small, easy to integrate, to meet all kinds of complex application scenarios;
9, support USB interface and provide the corresponding SDK development kit, support secondary development.
Specification parameters
|
Specifications |
|
|
Model |
MD31 |
|
Product Functions |
Iris capture, iris recognition, local matching, remote matching, template matching, image matching |
|
Connection |
USB 2.0 |
|
Power |
<4W |
|
Product Dimensions(L x W x H) |
80mm*25mm*35mm* |
|
Storage Capacity |
10000 users 500 users |
|
working distance |
370mm~500mm |
|
Identification method |
Any single eye/both eyes |
|
Imaging band |
850nm |
|
Work light intensity |
0~6000 Lux |
|
Operating temperature |
0℃～45℃/-10℃～55℃ |
|
Working humidity |
0 – 93% RH |
|
Performance parameters |
|
|
spatial resolution |
> 4.0 Lp/mm > 16 Pixels/mm |
|
Image Resolution |
640 x 480 |
|
pixel depth |
8 bits/pixel |
|
Image frame rate |
25 frames/s |
|
Encoding speed (picture/second) |
20 |
|
Comparison speed (template/second) |
10000 |
|
Accuracy |
False Accept Rate (FAR)10-7 False Rejection Rate (FRR)10-3 |
|
Meet the standard |
|
|
eye safety |
Conforms to IEC 62471 "Photobiological Safety of Lamps and Lamp Systems" |
|
image standard |
Comply with the national standard GB/T 33767.6-2018 iris image data |
|
algorithm performance |
Comply with national standards (GB/T20979-2019) "Information Security Technology Iris Recognition System Technical Requirements" |
Module application field
The main application fields include iris access control system, iris attendance system, desktop equipment, etc.
