Smart Iris Lock: 33-50cm Recognition Distance, Automatic Illumination Compensation

Smart Iris Lock: 33-50cm Recognition Distance, Automatic Illumination Compensation

Description

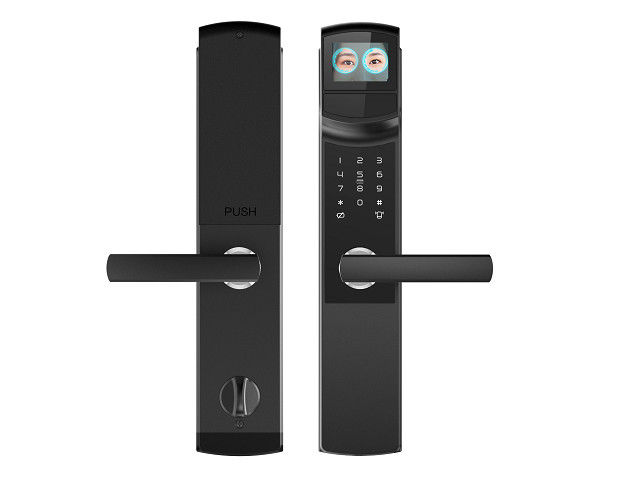

i21 is a smart lock that mainly uses binocular iris recognition, supplemented by password, IC card and key opening methods. It is a pure hardware design iris recognition device that integrates registration and recognition.

The iris smart lock is mainly suitable for the entrance door, which can realize the functions of user registration, identification and precise personnel management.

Features

• Equipped with the iris recognition chip Q10 independently developed by Hongshi patented technology;

• The recognition distance is as high as 33~50cm, the recognition distance is long and the range is wide;

• Illumination automatic gain compensation, dark environment, wearing glasses can be recognized normally;

• Touch button operation, user-friendly operation and voice prompt, more convenient to use;

• C-level lock cylinder supports 18-digit virtual password, which is safer to use;

• Military-grade free handle, lift up and lock, safe and worry-free;

• Anti-demolition, low battery voltage alarm, more assured use;

• Emergency power supply interface in case of emergency;

• Comes with card swiping function, suitable for the elderly and children;

• Suitable for 1.5m-1.8m height range;

• The iris code is encrypted by the highly secure AES-256 method;

• Iris image preprocessing, image quality evaluation, and iris image encoding and encryption are all completed on the iris recognition hard-core dedicated chip (on-chip), ensuring data security packaging of iris information before transmission;

•

• Specification parameter table

•

  Product number	i21
  Product size (L*W*H)	405*78*49mm
  product material	High Strength Zinc Alloy
  Applicable door thickness	45~120mm
  display screen	2.4 inch LCD screen, resolution 320*240
  Camera	Iris: 2MP
  Lock cylinder specification	C-level lock cylinder
  working distance	Iris: 33~50cm
  way of opening the door	Iris, password, IC card, mechanical key
  Adapt to height range	1.5~1.8m (calculated as 1m from the handle to the ground)
  user capacity	64 templates
  average recognition time	≤1s
  battery life	over 8 months
  False Acceptance Rate (FAR)	10-7
  False Rejection Rate (FRR)	10-3
  Infrared Safety Standard	Conforms to American standard ANSI RP-27.1-96 Conforms to European standard IEC/EN62471
  Core Algorithm Performance	"Technical Requirements for Iris Recognition System of Information Security Technology" GB/T20979-2019
  Iris Image Quality	Comply with the national standard GB/T33767.6-2018 iris image data
  Working temperature	-10°C~55°C
  working environment humidity	0～93%RH, non-condensing
  Light intensity of working environment	0～6000Lux (non direct sunlight)
  voltage	3.7V/18200mAH rechargeable lithium battery
  Operating Tips	LCD prompt, voice guide





  Applicable field



  i21 is suitable for high-end residences, villas, government agencies, universities and other places with high security requirements.
