Product Details
Place of Origin: China
Brand Name: HOMSH
Certification: ISO9001
Model Number: MI20
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiated
Delivery Time: 5-8 work day
Payment Terms: T/T
Working Distance: |
20~50cm(customizable) |
False Accept Rate(FAR): |
10-7 |
False Rejection Rate(FRR): |
10-3 |
Sensor Image: |
1280x800pixel |
Supply Voltage: |
5V |
Rated Power (MAX): |
<3.5W |
Working Distance: |
20~50cm(customizable) |
False Accept Rate(FAR): |
10-7 |
False Rejection Rate(FRR): |
10-3 |
Sensor Image: |
1280x800pixel |
Supply Voltage: |
5V |
Rated Power (MAX): |
<3.5W |

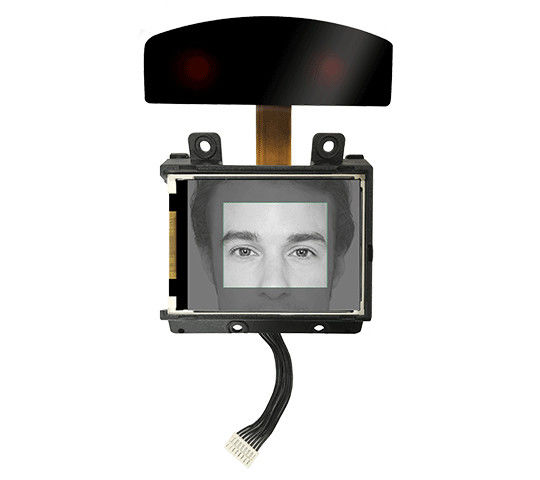

Iris Recognition Module: Integrated Registration And Recognition, Accurate Acquisition And Advanced Image Processing
Description
The main functions of this recognition module are iris registration and iris recognition. The module consists of two parts: iris camera module and iris codec module. Iris camera module to achieve the iris image acquisition function. Iris coding module can process iris image, generate iris module, store template, delete template and compare template.
Functional characteristics
1. Iris recognition algorithm PhaseIris HWTM with iris recognition technology; (Invention Patent No. ZL 201410430535.2)
2, equipped with iris recognition technology iris recognition chip Q10;
3, can be equipped with iris camera iic20 to achieve iris acquisition;
4, the internal integrated image evaluation module, to ensure that high-definition accurate iris picture effective capture;
5, easy to integrate, provide SDK, easy to secondary development applications.
Specification parameters
| Working distance | 20~50cm(customizable) |
| False Accept Rate(FAR) |
10-7
|
| False Rejection Rate(FRR) | 10-3 |
| Sensor image | 1280x800pixel |
| Coding speed | 0.1 S |
| Input/output interface | I2C |
| Supply voltage | 5V |
| Supply current | 670mA |
| Power (MAX) | <3.5W |
| Infrared assisted lighting | Near infrared 850nm IR LED x 2(available in dark environments) |
| Rated power (MAX) | <3.5W |
Application
Iris door lock, iris safe, iris access control system, iris attendance system, encryption equipment, iris collection and comparison equipment.
