Elevate Access Control Iris Scanner Module With MI30-500 IAccess Control Enhancement

Elevate Access Control With MI30-500 IAccess Control Enhancement, Compact Size, Wide Recognition Range, Fast Recognition

Description

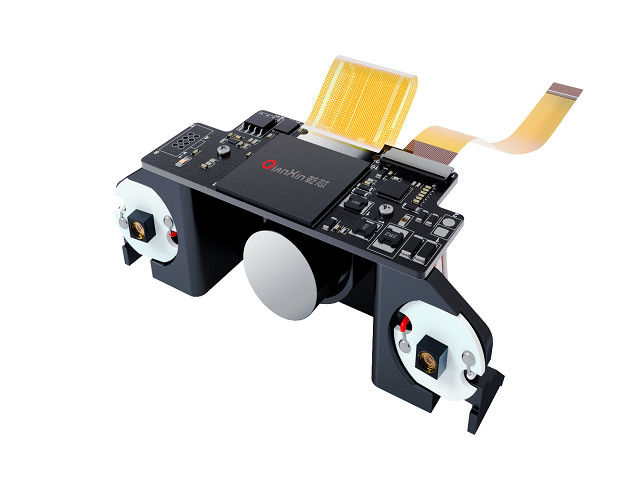

The MI30-500 Iris Module is designed with compactness in mind, utilizing an I2C interface and tailored for iris recognition. Internally, it integrates the third-generation Phaseiris™3.0 iris recognition technology developed by IrisTech, covering a recognition distance range of 350mm to 550mm. The module boasts a rich array of features, including iris acquisition and comparison capabilities. Its local storage can accommodate the iris data of up to 500 users, equating to 1000 iris templates. Despite its diminutive dimensions (dimensions: Length 68mm x Width 26mm x Height 23mm), the module is easily integrated and finds versatile applications in smart door locks, intelligent storage cabinets, access control, and various other intelligent terminal devices.

Functional characteristics

1. Cutting-Edge Algorithm: Harnessing the power of the third-generation Phaseiris™ iris recognition technology, the module ensures an unparalleled iris acquisition and matching experience, characterized by precision, speed, and top-notch security.
2. Exceptional Accuracy: Achieves a remarkable Error Rejection Rate (FRR) of 10^-3 and an extraordinary False Acceptance Rate (FAR) of 10^-7, underscoring its reliability and robustness.
3. Optimized Optics: Incorporates a meticulously designed high-resolution lens assembly that captures iris intricacies with unrivaled clarity and fidelity.
4. Vast Recognition Range: Encompassing an expansive recognition distance range of 350mm to 550mm, the module accommodates diverse usage scenarios.
5. High-Resolution Output: Offers parallel image output at a resolution of 320x180, delivering images with remarkable detail.
6. Ample Local Storage: Empowers the module to store iris templates for up to 500 individuals, enhancing versatility and usability.
7. Compact Form Factor: Designed with compactness in mind, the module's small dimensions make integration seamless, making it a suitable choice for complex applications.
8. User-Friendly Integration: Facilitates integration through I2C interface support, and users can take advantage of the provided SDK development kit for efficient and rapid development.

Specifications:

Performance Parameters:

Compliance Standards:

Application

The main application areas include iris lock, iris box cabinet, iris access control system, iris attendance system, system encryption, identity authentication and login equipment.
