MI30-2000 Iris Recognition Module – I2C-Enabled Compact Biometric Core Component

Product Details

Place of Origin: China

Brand Name: HOMSH

Certification: ISO9001

Model Number: MI30-2000

Payment & Shipping Terms

Delivery Time: 5-8 work day

Payment Terms: T/T

Get Best Price
Highlight:

I2c Module 350mm

,

I2c Module 550mm

,

i2c module arduino Matte Black

Data Transfer:
USB/Wi-Fi/Bluetooth
Dimensions:
80 X 80 X 25 Mm
Image Format:
JPEG/BMP/PNG
Image Quality:
High
Imaging Band:
850nm
Operating Humidity:
20-80% RH
Operating Temperature:
-20°C To +50°C
Power Supply:
DC 5V
Product Name:
Iris Scanner Module
Scanning Angle:
360°
Scanning Range:
30-80 Cm
Scanning Speed:
1 Second
Scanning Technology:
Iris Recognition
Weight:
100 G
Data Transfer:
USB/Wi-Fi/Bluetooth
Dimensions:
80 X 80 X 25 Mm
Image Format:
JPEG/BMP/PNG
Image Quality:
High
Imaging Band:
850nm
Operating Humidity:
20-80% RH
Operating Temperature:
-20°C To +50°C
Power Supply:
DC 5V
Product Name:
Iris Scanner Module
Scanning Angle:
360°
Scanning Range:
30-80 Cm
Scanning Speed:
1 Second
Scanning Technology:
Iris Recognition
Weight:
100 G
MI30-2000 Iris Recognition Module – I2C-Enabled Compact Biometric Core Component

Product Overview

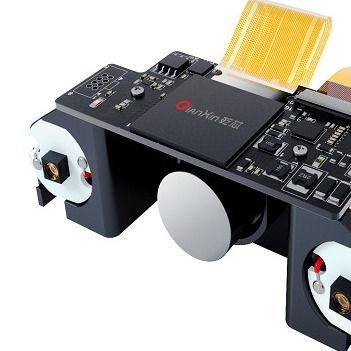

      The HOMSH MI30-2000 Iris Recognition Module is a compact iris capture and recognition core component with an I2C interface, developed based on IrisTech's innovative technology and the PhaseiriTM 3.0 iris recognition algorithm. It enables accurate single-eye/dual-eye iris recognition within a 350mm~550mm working distance and supports local storage for 2000 individuals (4000 iris templates). With a compact size of 68mm×26mm×23mm, it can be seamlessly integrated into various intelligent terminals such as smart door locks, intelligent cabinets, and access control systems, providing a secure and efficient identity authentication solution.

Core Functions and Technical Features

1. Full-Process Iris Recognition & Matching

The module covers the entire iris recognition workflow:

      ● Iris Capture & Recognition: Utilizes an 850nm imaging band to capture iris textures, supporting arbitrary single-eye or dual-eye recognition modes. The generated iris features are unique and stable for life, making them a highly anti-counterfeiting identifier in biometrics.

      ● Fast Encoding & Matching: Achieves an encoding speed of 20 images/second and a matching speed of 2000 templates/second. After comparing feature templates with the local library, identity results are quickly output, meeting the needs of high-concurrency scenarios.

      ● Large-Capacity Storage Support: Local storage capacity is 2000 individuals (4000 iris templates), covering identity management needs for medium to large-scale scenarios.

2. High-Performance Imaging & Algorithm

      ● Advanced Imaging Specifications: Equipped with a customized high-resolution lens component, it captures images at a resolution of 640×480, with a pixel depth of 8 bits/pixel, an image frame rate of 25 frames/second, and a spatial resolution of >4.0 lp/mm (>16 Pixel/mm), clearly presenting iris details.

      ● Third-Generation Algorithm Guarantee: Adopts the PhaseirisTM 3.0 core algorithm, achieving a False Rejection Rate (FRR) of 10-3 and a False Acceptance Rate (FAR) of 10-7, greatly reducing the probability of misrecognition and rejection, and ensuring stability and reliability in high-security scenarios.

3. Hardware Specifications & Environmental Adaptability

      ● Compact & Efficient Design: The module has a size of only 68mm (L) ×26mm (W) ×23mm (H), a power consumption of 3.2W, and uses an I2C interface, making it easy to embed into various terminal devices and simplifying the hardware integration process.

      ● Wide Environmental Tolerance:

               Operating illuminance: 0~6000 Lux, enabling clear iris image capture in both low-light and strong-light environments;

               Operating temperature range: -10℃~55℃; Humidity adaptability: 0~93% RH, suitable for various deployment scenarios such as indoor, outdoor, high and low temperatures.

4. Compliance with Standards

The module meets multiple regional safety and technical standards to ensure reliable deployment:

      ● Infrared Safety Standards: Complies with the US ANSI RP-27.1-96 and EU IEC/EN62471 infrared safety standards;

      ● Iris Image Standard: Complies with China's GB/T 33767.6-2018 "Iris Image Data" standard;

      ● Algorithm Performance Standard: Complies with China's GB/T 20979-2019 "Information Security Technology - Technical Requirements for Iris Recognition Systems".

Typical Application Scenarios

Based on the high security of iris recognition and the compact integration of MI30-2000, it is suitable for the following scenarios:

      ● Smart Access Control & Attendance: Access control systems in office buildings and factory parks (the 350-550mm working distance supports comfortable "stand-and-recognize" operation), or attendance terminals, enabling fast iris recognition for door opening and attendance;

      ● Intelligent Cabinet Management: Confidential file cabinets, medical supply cabinets, tool storage cabinets, etc., ensuring the security of cabinet opening permissions through iris recognition;

      ● Smart Locks: Residential and commercial smart door locks, replacing traditional keys or passwords, improving the security level and convenience of locks;

      ● System Identity Authentication: Identity authentication login for computer systems and industrial control platforms, or permission verification for encryption systems, ensuring operational security.

Why Choose HOMSH MI30-2000?

      1. Advanced & Efficient Algorithm: The PhaseirisTM 3.0 algorithm achieves FRR 10-3 and FAR 10-7, with fast encoding/matching speed and accurate and reliable recognition;

      2. Flexible & Convenient Integration: I2C interface + compact size (68×26×23mm), easily embedded into various intelligent terminals;

      3. Strong Environmental Adaptability: Wide temperature, illuminance, and humidity ranges meet the deployment requirements of complex scenarios;

      4. Standard Compliance & Reliability: Complies with multiple regional safety and technical standards in China, the US, and Europe, making deployment more authoritative;

      5. Good Capacity Adaptability: Storage for 2000 individuals (4000 templates) covers identity management needs for medium to large-scale scenarios.

      As a professional enterprise in the biometric sector, Wuhan Homsh Technology drives secure authentication through technological innovation. Leveraging proprietary core algorithms, end-to-end technical capabilities, and high-precision hardware expertise, we provide professional support for our full range of biometric products, including iris recognition and vein recognition.

      We cater to the needs of global industries like finance and security, offering technical consultation, custom development, and round-the-clock after-sales support. We look forward to partnering with global counterparts to build a secure authentication ecosystem via biometric technology and empower industrial digital upgrading.

Specifications

Model MI30-2000
Product Function Iris Collection, Iris Recognition
Connection Method I2C
Power 3.2W
Product Size (L x W x H) 68 x 26 x 23mm
Storage Capacity 2000 individuals (4000 templates)
Working Distance 350mm~550mm
Recognition Mode Dual-eye/Single-eye
Imaging Band 850nm
Working Illumination 0~6000 Lux
Working Temperature -10℃~55℃
Working Humidity 0 ~ 93% RH
Performance Parameters
Spatial Resolution

> 4.0 lp/mm

> 16 Pixel/mm

Image Resolution 640 x 480
Pixel Depth 8 bits/pixel
Frame Rate 25 frames/s
Encoding Speed (images/sec) 20
Matching Speed (templates/sec) 2000
Accuracy

False Acceptance Rate (FAR) 10-7

False Rejection Rate (FRR) 10-3

Compliance Standards
Infrared Safety Standard Complies with US standard ANSI RP-27.1-96, and EU standard IEC/EN62471
Iris Image Standard Complies with national standard GB/T 33767.6-2018 Iris Image Data
Iris Algorithm Performance Complies with national standard GB/T 20979-2019 "Technical Requirements for Information Security Iris Recognition Systems"
