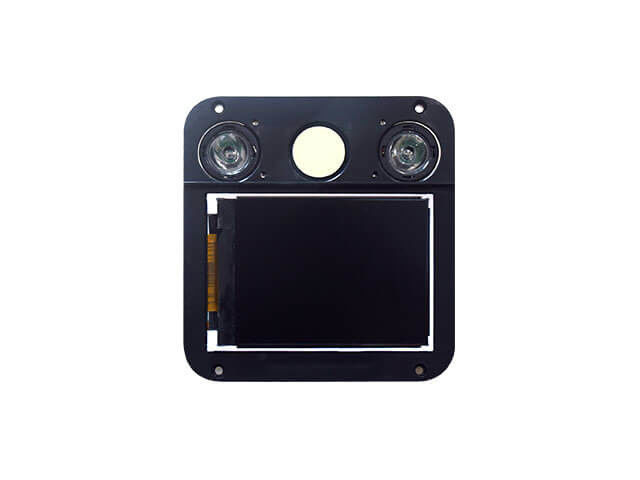

MD20-2000-TFT Iris Recognition Module – Innovative Iris Scanning Component with Real-Time 2.4" Display

Product Overview

Core Functions and Technical Features

1. Full-Cycle Iris Recognition & Interactive Experience

      ● Real-Time Visual Feedback: Equipped with a 2.4-inch display that instantly presents images during iris capture, enhancing interactivity and allowing users to intuitively understand the capture status.

      ● Iris Capture & Recognition: Supports any single-eye/dual-eye recognition mode with an imaging wavelength range of 700nm - 900nm, accurately capturing iris textures within a 250mm - 300mm working distance. The generated iris features are unique and lifelong stable, serving as high-security biometric identifiers.

      ● Alignment Assistance & Liveness Detection: Adopts video echo-assisted alignment to improve capture accuracy; built-in liveness detection effectively prevents malicious attacks such as paper images and video replays, strengthening security protection.

2. High-Performance Imaging & Algorithm

      ● Advanced Imaging Specifications: Captures images at 640×480 resolution with 8 bits/pixel depth, 25 frames/second frame rate, and spatial resolution >4.0 Lp/mm (>16 Pixels/mm), clearly presenting iris details.

      ● Fast Registration & Recognition: Registration time ≤1 second and recognition time ≤1 second, enabling smooth identity authentication even in high-concurrency scenarios.

      ● Industry-Leading Accuracy: Achieves a False Acceptance Rate (FAR) of 10⁻⁷ and a False Rejection Rate (FRR) of 10⁻³, minimizing false recognition and rejection probabilities to ensure secure identity verification.

3. Hardware Specifications & Environmental Adaptability

      ● Compact & Efficient Design: Product dimensions 72.5mm×77mm×28mm with a typical weight of 68g; features a USB 2.0 interface and power consumption of 3.5W, facilitating integration into various terminal devices and simplifying the integration process.

      ● Wide Environmental Tolerance:

               Operating illuminance: 0 - 6000 Lux, enabling stable iris image capture in both low-light and strong-light environments.

               Operating temperature: -10℃ to 55℃; humidity adaptability: 0% - 93% RH, suitable for diverse deployment scenarios including indoor, outdoor, high and low temperatures.

4. Standard Compliance & Compatibility

      ● Safety & Technical Standards:

               Eye safety complies with IEC 62471 "Photobiological Safety of Lamps and Lamp Systems".

               Iris images comply with China's GB/T 33767.6-2018 "Iris Image Data" standard.

               Algorithm performance complies with China's GB/T 20979-2019 "Information Security Technology - Technical Requirements for Iris Recognition Systems".

      ● Cross-Platform SDK Support: Provides a matching SDK compatible with Windows XP/7/8/10, Linux, Android, and other system platforms, facilitating easy secondary development for various applications.

Typical Application Scenarios

      ● USB-Based Iris Devices: Standalone USB iris collection tools, USB iris authorized login devices (e.g., secure computer login via iris authentication).

      ● Access Control & Identity Verification: Access control systems in enterprises, campuses, etc. (250-300mm working distance supports convenient close-range recognition), or attendance terminals, enabling fast iris recognition for door access and attendance management.

      ● Custom Smart Terminals: Embedded into self-service kiosks, medical devices, financial terminals, etc., for identity verification and permission management, ensuring scenario security.

Why Choose HOMSH MD20-2000-TFT?

      1. Innovative Interactive Experience: 2.4-inch real-time display provides intuitive visual feedback, enhancing interactivity and transparency during iris capture.

      2. Fast & Accurate Recognition: ≤1 second for registration/recognition + FAR 10⁻⁷/FRR 10⁻³, balancing efficiency and security.

      3. Easy Integration & Compatibility: USB 2.0 interface + cross-platform SDK simplify integration and secondary development of existing systems.

      4. Comprehensive Security Protection: Liveness detection + multi-standard compliance effectively prevent malicious attacks, ensuring deployment credibility.

      5. Strong Environmental Adaptability: Wide temperature, illuminance, and humidity ranges meet deployment needs in complex scenarios.

Specification parameters
