Product Details
Place of Origin: China
Brand Name: HOMSH
Certification: ISO9001
Model Number: MD32
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiated
Delivery Time: 5-8 work day
Payment Terms: T/T
Product Dimensions (L*W*H): |
100*28*32mm |
Weight (Net): |
100g |
Iris Recognition Distance: |
33-55cm |
Iris Registration Speed: |
≤1 Second |
Iris Recognition Speed: |
≤1 Second |
Power Consumption (Peak): |
3.5W |
Product Dimensions (L*W*H): |
100*28*32mm |
Weight (Net): |
100g |
Iris Recognition Distance: |
33-55cm |
Iris Registration Speed: |
≤1 Second |
Iris Recognition Speed: |
≤1 Second |
Power Consumption (Peak): |
3.5W |
Iris Recognition USB Module Meets Infrared Safety Standards access control systems
Description

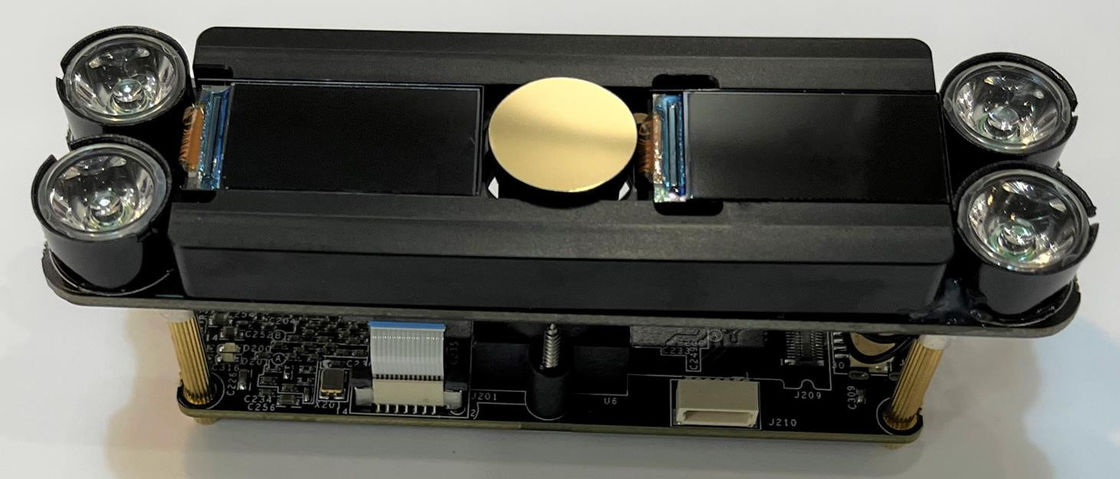

MD32 Iris recognition module is a small-size USB module with integrated iris recognition algorithm. This product integrates infrared LED fill light, white light fill light, iris recognition Sensor, iris recognition algorithm processing and USB interface. Suitable for access control, lockers, login authentication and other product integration.
MD32 iris recognition module can be widely used in access control systems, lockers, login authentication and other product integration fields. Its compact design and the convenience of the USB interface make it an ideal choice for easy embedding in a variety of devices and applications. Whether used to improve the security of access control systems or to enable advanced authentication, the MD32 Iris Recognition module provides highly accurate and secure iris recognition capabilities, providing a powerful solution for modern security needs.
Features
◆ Single/binocular iris recognition;
◆ Iris working distance (33-55cm);
◆ Comes with small display screen.
◆ In vivo detection
◆ Local storage capacity in the module 200 / 1000 / 5000 users (2 templates per person)
◆ Iris local fast registration and recognition, registration recognition time is not more than 1 second;
◆ USB virtual serial port, drive free, only need serial assistant tool can easily get started;
◆ One TTL Uart 115200bps can be connected to virtual keyboard module, to achieve automatic login application after comparison;
◆ One TTL Uart communication, 115200bps, can be freely selected with USB CDC, the first command receiving interface when powered on
If it is Uart, the module works in UART mode. The first command is received by the USB CDC port and works in Usb CDC serial port mode.
Specification
| Specification | Details |
|---|---|
| Product Model | MD32 |
| Product Dimensions (L*W*H) | 100*28*32mm |
| Weight (Net) | 100g |
| User Capacity (templates) | Local: 200 users / 1000 users/5000 users (MD32-200) |
| Iris Image Quality | Iris capture standard: 4.0lp/mm@>60% contrast, complies with iris image quality international standard ISO/IEC 29794-6:2015 |
| Infrared Safety Standards | Complies with ANSI RP-27.1-96 (US) and IEC/EN62471 (EU) |
| Iris Recognition Distance | 33-55cm |
| Iris Recognition Method | Dual-eye or any single-eye recognition |
| Iris Registration Speed | ≤1 second |
| Iris Recognition Speed | ≤1 second |
| False Acceptance Rate (FAR) | 10-7 |
| False Rejection Rate (FRR) | 10-3 |
| Communication Method | USB CDC Serial Port, TTL UART |
| Interfaces | USB: Type-C or 5-pin 1mm pitch connector |
| TTL UART: 115200bps | |
| Operating Temperature Range | -10˚C ~ 55˚C |
| Humidity | 0 ~ 90% RH, non-condensing |
| Power Supply | 5V USB Direct Supply |
| Power Consumption (Peak) | 3.5W |
