Product Details
Place of Origin: China
Brand Name: HOMSH
Certification: ISO9001
Model Number: MC20-2000
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiated
Delivery Time: 5-8 work day
Payment Terms: T/T
Connection Interface: |
USB 2.0 |
Weight (Typical): |
52g |
Operating Distance: |
330mm-400mm |
Recognition Mode: |
Single Eye/Both Eyes |
Operating Temperature: |
-10°C～55°C |
Operating Humidity: |
0～93% RH |
Registration Time: |
1s |
Recognition Time: |
1s |
Frame Rate: |
25 Frames/s |
Pixel Depth: |
8 Bits/pixel |
Lmage Resolution: |
640 X 480 |
Spatial Resolution: |
> 4.0 Lp/mm />16 Pixels/mm |
Connection Interface: |
USB 2.0 |
Weight (Typical): |
52g |
Operating Distance: |
330mm-400mm |
Recognition Mode: |
Single Eye/Both Eyes |
Operating Temperature: |
-10°C～55°C |
Operating Humidity: |
0～93% RH |
Registration Time: |
1s |
Recognition Time: |
1s |
Frame Rate: |
25 Frames/s |
Pixel Depth: |
8 Bits/pixel |
Lmage Resolution: |
640 X 480 |
Spatial Resolution: |
> 4.0 Lp/mm />16 Pixels/mm |

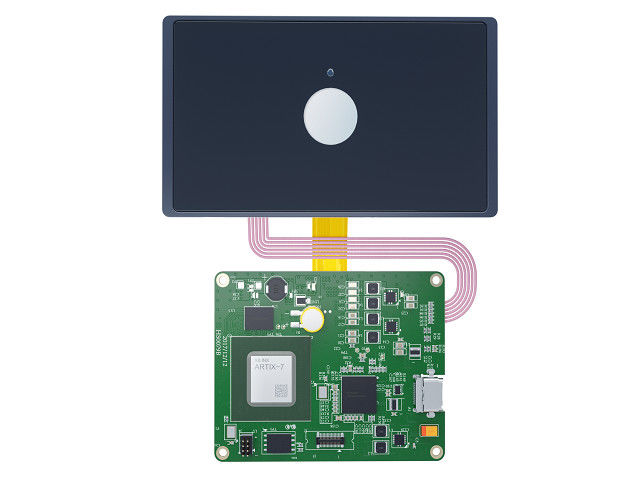

Iris Recognition Device Module Compact And Lightweight, Suitable For A Variety Of Installation Environments.
Description
The MC20 is a cutting-edge Iris Recognition Device designed for iris data capture and recognition. With a compact and lightweight build, this device offers fast and accurate recognition in both single-eye and dual-eye modes. The indicator light feedback assists with precise alignment. With a wide operating temperature range and compliance with international safety standards, the MC20 is suitable for various applications, ensuring secure and efficient identity verification. Whether used for access control or authentication purposes, the MC20 provides reliable and high-precision iris recognition technology.
Functional
Specification
| Specification | Details |
|---|---|
| Model | MC20 |
| Product Function | Iris Capture, Iris Recognition |
| Connection Interface | USB 2.0 |
| Power | 3.5W |
| Product Dimensions (L*W*H) | Not available (separate components) |
| Weight (Typical) | 52g |
| Operating Distance | 330mm-400mm |
| Recognition Mode | Single Eye/Both Eyes |
| Alignment Assistance | Indicator Light Feedback |
| Imaging Wavelength Band | 700nm～900nm |
| Operating Illuminance | 0~6000 Lux |
| Operating Temperature | -10°C～55°C |
| Operating Humidity | 0～93% RH |
Performance Parameters:
| Performance Parameter | Details |
|---|---|
| Spatial Resolution | > 4.0 Lp/mm |
| > 16 Pixels/mm | |
| Image Resolution | 640 x 480 |
| Pixel Depth | 8 bits/pixel |
| Frame Rate | 25 frames/s |
| Registration time | 1s |
| Recognition Time | 1s |
| Accuracy | False Acceptance Rate (FAR) 10-7 |
| False Rejection Rate (FRR) 10-3 |
Compliance Standards:
| Compliance Standard | |
|---|---|
| Eye Safety | Complies with IEC 62471 "Photobiological Safety of Lamps and Lamp Systems" |
| Image Standard | Complies with National Standard GB/T 33767.6-2018 for Iris Image Data |
| Algorithm Performance | Complies with National Standard GB/T20979-2019 "Information Security Technology - Iris Recognition System Technical Requirements" |
Application
It can be applied to USB iris collection devices, USB iris authorized login devices, access control application devices, etc., or it can be used independently.
