Class C Lock Core Smart Door Lock With Remote Control

Product Details

Place of Origin: China

Brand Name: HOMSH

Certification: ISO9001

Model Number: iD1

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiated

Delivery Time: 5-8day

Payment Terms: T/T

Get Best Price
Highlight:

Class C Iris Scanner Door Lock

,

Iris Scanner Door Lock Remote Control

Operating Voltage:
4.5-6.5V
Static Current:
≤50uA (average)
Dynamic Current:
≤200mA (average)
Relative Humidity:
15%-93% (non-condensing)
Verification Time:
≤1ms
FRR (False Rejection Rate):
<1%
FAR (False Acceptance Rate):
<0.001%
Card Reading Distance:
5-10mm, Response Time ≤1.5s
Emergency Mechanical Lock Core:
C-grade Anti-drill, Comes With 2 Keys
Password Length:
6-8 Digits
Operating Voltage:
4.5-6.5V
Static Current:
≤50uA (average)
Dynamic Current:
≤200mA (average)
Relative Humidity:
15%-93% (non-condensing)
Verification Time:
≤1ms
FRR (False Rejection Rate):
<1%
FAR (False Acceptance Rate):
<0.001%
Card Reading Distance:
5-10mm, Response Time ≤1.5s
Emergency Mechanical Lock Core:
C-grade Anti-drill, Comes With 2 Keys
Password Length:
6-8 Digits

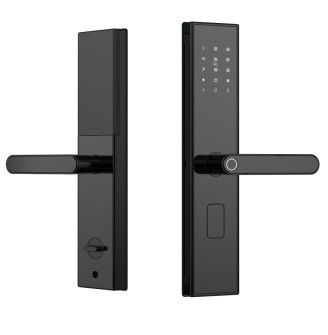

Class C Lock Core Smart Door Lock With Remote Control

Class C Lock Core Iris Scanner Door Lock with Remote Control

Product Description:

The smart door locker is a highly advanced and secure door access system designed for both indoor and outdoor applications. With a range of authentication methods, including fingerprint recognition, password entry, induction card usage, and mechanical key access, it ensures flexibility and convenience for users. The system provides robust security features, such as anti-static capabilities, continuous error protection, and an emergency mechanical lock core for added peace of mind.

The product boasts a sleek design with a Nano Black color, featuring high-quality materials such as aluminum alloy, zinc alloy, and copper for the lock shell, and toughened glass, PC IML, and acrylic for the panel. Its wide operating temperature range and compatibility with various door types make it suitable for diverse environments.

In addition to its security features, the system offers user-friendly management options, including the ability to delete users based on verification or assigned numbers. The inclusion of alarm functions, voice navigation, and emergency power supply further enhance the overall reliability and functionality of this advanced door access system.



Features:

  • Versatile Door Access:

    • Outdoor access methods include fingerprint, password, induction card, and mechanical key.
    • Indoor access features a quick-open mechanism with a mechanical handle.
  • Wide Operating Range:

    • Operating voltage: 4.5-6.5V.
    • Suitable for diverse environments with a working temperature range of -20°C to +70°C.
  • Secure Authentication:

    • Fingerprint sensor with a semiconductor inductive type and 508DPI resolution.
    • Supports up to 100 fingerprints with a quick verification time of ≤1ms.
    • Password functionality with 6-8 digit lengths, supporting up to 100 passwords.
    • Virtual passwords with a maximum of 16 digits for added security.
    • Card reading distance of 5-10mm, supporting ISO/IEC 14443A Type A, M1 cards.
  • Error Prevention and Protection:

    • Anti-static capability rated at Level 4.
    • Protection against continuous or cross-validation errors with an alarm and automatic lockout for 90 seconds.
  • Convenient Management:

    • Deletion function for administrators or regular users based on verification or assigned numbers.
    • System settings without local menu display.


Technical Parameters:

Parameter Value
Door Opening Method Outdoor: Fingerprint, Password, Induction Card, Mechanical Key<br>Indoor: Mechanical Handle Quick Open
Operating Voltage 4.5-6.5V
Static Current ≤50uA (average)
Dynamic Current ≤200mA (average)
Backup Power None (Supports USB interface for external emergency power 5V)
Operating Temperature -20°C to +70°C (non-condensing)
Relative Humidity 15%-93% (non-condensing)
Anti-static Ability Level 4 (Contact discharge ±8KV, Air discharge ±15KV)
Sensor Type Fingerprint Semiconductor Inductive
Resolution 508DPI
Storage Capacity Supports up to 100 fingerprints
Comparison Method 1:N (N≤100)
Verification Time ≤1ms
FRR (False Rejection Rate) <1%
FAR (False Acceptance Rate) <0.001%
Password Length 6-8 digits
Password Storage Automatically allocates support for up to 100 passwords
Virtual Password Supports virtual passwords with up to 16 digits
Card Reading Distance 5-10mm, Response Time ≤1.5s
Card Storage Automatically allocates support for up to 100 cards
Card Type ISO/IEC 14443A Type A, M1
Anti-Tamper Protection Fingerprint, password, or card continuous or cross-validation errors reach 5 times, system alarm sounds and locks for 90 seconds; automatically releases after 90 seconds
Deletion Function Can verify users and delete administrators or regular users by number
System Settings Does not support local menu display
Alarm Function Power-on self-test, error test, low battery, anti-pry, anti-technical interference alarm
Voice Function Voice navigation, language (Chinese, English), customizable for multiple languages
Emergency Mechanical Lock Core C-grade anti-drill, comes with 2 keys
Emergency Power Supply When the battery is low and the lock cannot start, the panel lights up in red; there is an emergency power supply interface Type-C on the front lock, which can be externally powered by a conventional power bank with 5V/2A
Battery Specifications Size 5, LR6 AA dry battery, four batteries in total, single battery nominal value 1.5V
Product Color Nano Black
Lock Shell Material Aluminum alloy, zinc alloy, copper
Panel Material Toughened glass, PC IML, Acrylic
Execution Standard GA374-2019, GB21556-2008
Suitable Door Wooden doors, aluminum doors, stainless steel doors, etc. (Suitable for door thickness 40-120mm)


Applications:

  1.

  2. Residential Security:
  • Enhance home security with advanced access control features for both indoor and outdoor doors.
  • Convenient and secure entry for residents through fingerprint, password, or card access.
  1. Commercial Buildings:
  • Provide secure access to offices, meeting rooms, and other restricted areas.
  • Manage and monitor employee access with features such as fingerprint recognition and card access.
  1. Hospitality Industry:
  • Improve guest safety and convenience in hotels and resorts.
  • Streamline check-in processes with secure and efficient door access using various authentication methods.
  1. Educational Institutions:
  • Secure access to classrooms, laboratories, and administrative offices.
  • Manage student and staff access with advanced authentication options.
  1. Healthcare Facilities:
  • Enhance security in hospitals and clinics, ensuring only authorized personnel can access sensitive areas.
  • Provide secure storage for medical supplies and equipment.
  1. Government and Institutional Buildings:
  • Strengthen security in government offices, embassies, and other institutions.
  • Control access to classified or restricted areas with advanced authentication methods.
  1. Commercial Spaces and Retail:
  • Secure entry to offices, storage rooms, or back-office areas in commercial spaces.
  • Improve the security of retail stores by restricting access to certain areas.
  1. Data Centers and Server Rooms:
  • Enhance physical security in critical infrastructure facilities.
  • Restrict access to server rooms and data centers to authorized personnel only.
  1. Multi-Tenant Residences:
  • Secure entry in apartment buildings and condominiums.
  • Provide residents with a convenient and secure means of access to shared spaces.
  1. Industrial Facilities:
  • Control access to manufacturing plants, warehouses, and other industrial sites.
  • Ensure the security of valuable equipment and materials.
  1. Critical Infrastructure:
  • Protect critical infrastructure facilities such as power plants, water treatment plants, and communication hubs.
  • Restrict entry to sensitive areas to authorized personnel only.

Customization:

HOMSH Iris Scanner Door Lock – Biometric Authentication Lock
  • Brand Name: HOMSH
  • Place of Origin: China
  • Certification: ISO9001
  • Minimum Order Quantity: 1
  • Delivery Time: 5-8day
  • Payment Terms: T/T
  • Voice Prompt: Yes
  • Type: Smart Lock
  • Applicable door thickness: 40~120mm





FAQ:

Q&A for HOMSH Iris Scanner Door Lock
  • Q: What is the brand name of Iris Scanner Door Lock?
    A: The brand name is HOMSH.
  • Q: Where does the product come from?
    A: The product is manufactured in China.
  • Q: Is the product certified?
    A: Yes, the product is certified with ISO 9001.
  • Q: What is the minimum order quantity?
    A: The minimum order quantity is 1.
  • Q: How long does the delivery take?
    A: The delivery usually takes 5-8 days.
  • Q: What are the payment terms?
    A: The payment terms are T/T.
