Product Details
Place of Origin: China
Brand Name: HOMSH
Certification: ISO9001
Model Number: Z-PVT332
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiated
Delivery Time: 5-8 work day
Payment Terms: T/T
Operation Mode: |
Palm Vein (1:N Recognition) Palm Vein (1:1 Recognition) + IC Card (optional) |
Recognition Speed: |
1:N Mode: <1 Second (N=6000 People) |
Recognition Records: |
1,000,000 Records (standalone Version) |
Memory: |
DDR4 2GB |
Storage Capacity: |
16GB |
Camera: |
Single Near-infrared Camera, Palm Vein Image Distortion Rate <5% |
Operating System: |
Android 11 |
Touch Screen: |
5-inch Capacitive Screen (resolution 720 X 1280 Pixels), Portrait Orientation |
Wired Network: |
10M/100M/1000M Auto-negotiation |
Wireless Network: |
Supports WiFi 802.11b/g/n |
Bluetooth: |
Supported (optional) |
Power Adapter: |
DC 12V/4A |
Operation Mode: |
Palm Vein (1:N Recognition) Palm Vein (1:1 Recognition) + IC Card (optional) |
Recognition Speed: |
1:N Mode: <1 Second (N=6000 People) |
Recognition Records: |
1,000,000 Records (standalone Version) |
Memory: |
DDR4 2GB |
Storage Capacity: |
16GB |
Camera: |
Single Near-infrared Camera, Palm Vein Image Distortion Rate <5% |
Operating System: |
Android 11 |
Touch Screen: |
5-inch Capacitive Screen (resolution 720 X 1280 Pixels), Portrait Orientation |
Wired Network: |
10M/100M/1000M Auto-negotiation |
Wireless Network: |
Supports WiFi 802.11b/g/n |
Bluetooth: |
Supported (optional) |
Power Adapter: |
DC 12V/4A |
Description

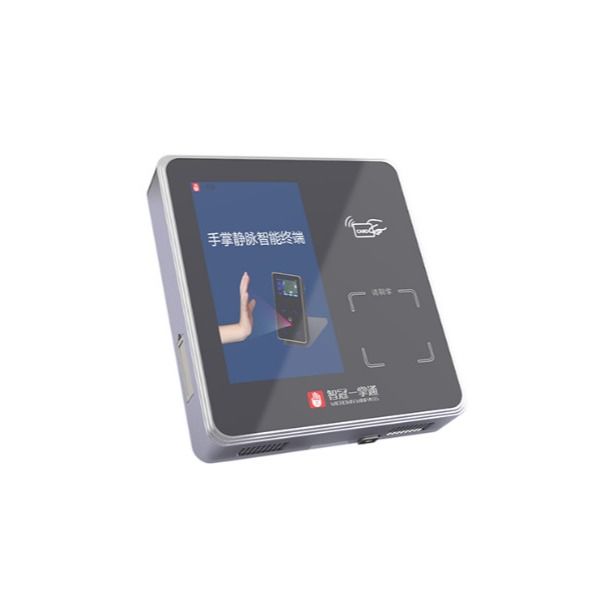

Introducing our cutting-edge palm vein recognition system, a marvel of non-contact technology that combines efficiency, security, and versatility. Designed for a range of applications, this state-of-the-art solution is a game-changer in access control, attendance management, and more.
Product Features
Specifications
| Technical Specifications | Values |
|---|---|
| Operation Mode | Palm Vein (1:N recognition) |
| Palm Vein (1:1 recognition) + IC card (optional) | |
| Recognition Speed | 1:N Mode: <1 Second (N=6000 people) |
| 1:1 Mode: <0.3 Seconds | |
| Note: This metric is based on the standard hardware and software environment of the product, calculated per hand per person. | |
| Recognition Rate | False Rejection Rate (FRR): 0.01% (1 retry) |
| False Acceptance Rate (FAR): <0.00001% | |
| (Based on ISO/IEC 19795 algorithm) | |
| Recognition Method | Non-contact recognition method, effective recognition distance 100mm-280mm |
| Guidance Method | Real-time display of grayscale palm vein images in the window, guiding users for palm positioning and posture adjustments; the system provides text prompts about hand positioning (e.g., too high, too low). |
| Recognition Records | 1,000,000 records (standalone version) |
| Processor | 64-bit ARM quad-core processor, with a maximum frequency of up to 2.0GHz |
| Memory | DDR4 2GB |
| Storage Capacity | 16GB |
| Camera | Single near-infrared camera, palm vein image distortion rate <5% |
| Operating System | Android 11 |
| Touch Screen | 5-inch capacitive screen (resolution 720 x 1280 pixels), portrait orientation |
| Interfaces | 1 USB port, supports USB storage devices; Wiegand 26/34; exit switch; electric lock interface (normally open/normally closed) |
| Wired Network | 10M/100M/1000M auto-negotiation |
| Wireless Network | Supports WiFi 802.11b/g/n |
| Bluetooth | Supported (optional) |
| Speaker | Built-in speaker |
| Power Adapter | DC 12V/4A |
| Rated Power | <10W |
| Environmental Requirements | Natural Light (Sunlight): Registration <2000Lux, Recognition <3000Lux |
| Fluorescent Light: Registration <2000Lux, Recognition <3000Lux | |
| Incandescent/Halogen Light: Registration <500Lux, Recognition <700Lux | |
| Applicable Users | Recommended for individuals aged 12 and above |
| Application Scenarios | Indoor and semi-outdoor; avoid direct sunlight; installation location should be dust and water-resistant |
| Operating Temperature | -10°C to 60°C (ambient temperature) |
| Operating Humidity | Relative humidity 10% to 95%, non-condensing |
| Casing Material | Aluminum alloy |
| Mounting Method | Wall-mounted |
| Dimensions | 160 x 149 x 29mm (length x width x thickness) |
Application Scenarios
Used in access control, attendance, and check-in scenarios.
Applied in the management of mobile populations in rental properties and affordable housing.
