MI30-100 Iris Camera Module 3.2W Iris Recognition Module 850nm Imaging band

MI30-100 Iris Recognition Module With 100 Templates Storage Smart Door Lock, Smart Box Cabinet

Description

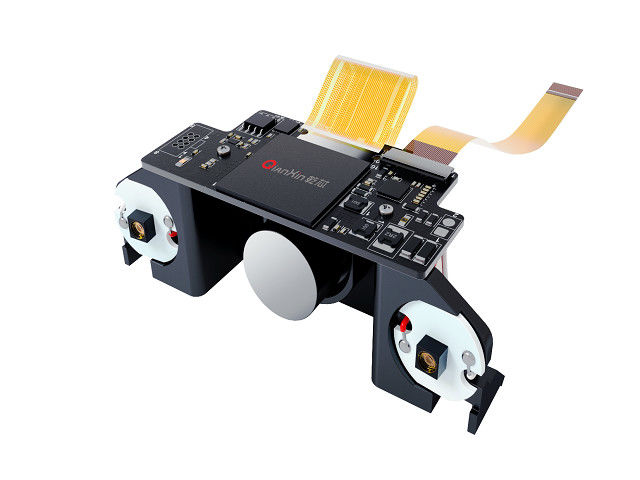

MI30 Iris module is a compact design of I2C iris coding recognition module, using the third generation iris recognition algorithm Phaseiris™3.0 iris recognition technology independently developed by iris recognition technology, can be adapted to 350mm~550mm recognition range; The MI30 module supports iris collection and comparison, and can store up to 100 users (200 mesh templates) locally. MI30 module compact size (size: L68 x W26 x H23mm), simple integration, can be widely used in smart door locks, smart cabinets, access control and other intelligent terminal equipment.

Functional characteristics

• The module adopts the third generation of hard accounting method Phaseiris™ iris recognition technology, which has a more accurate, fast and safe iris collection and comparison experience;
• The error rejection rate (FRR) is 10^-3 and the error acceptance rate (FAR) is 10^-7
• The module is equipped with customized high-resolution lens components, and the iris details are perfectly presented;
• Large identification range 350mm~550mm;
• Support 320x180 parallel image output;
• 100 iris templates can be stored locally;
• The module is small in size and easy to integrate to meet various complex application scenarios.
• Support IIC interface and provide the corresponding SDK development kit, easy for users to simple and fast development

Specification parameters

Module application

The main application areas include iris lock, iris box cabinet, iris access control system, iris attendance system, system encryption, identity authentication and login equipment.
