Product Details
Place of Origin: China
Brand Name: HOMSH
Certification: ISO9001
Model Number: CS7
Payment & Shipping Terms
Delivery Time: 5-8 work day
Payment Terms: T/T
Product Size: |
1400mm*226mm*226mm |
Use Height Range: |
1.5~1.9m |
Average Acquisition Time: |
<2s |
Average Recognition Time: |
<1s |
Operating Ambient Temperature: |
0°C-55℃ |
Product Power Supply: |
220V |
Product Size: |
1400mm*226mm*226mm |
Use Height Range: |
1.5~1.9m |
Average Acquisition Time: |
<2s |
Average Recognition Time: |
<1s |
Operating Ambient Temperature: |
0°C-55℃ |
Product Power Supply: |
220V |
High-Performance Iris Capture Device with ID Card Reader collection work
Description

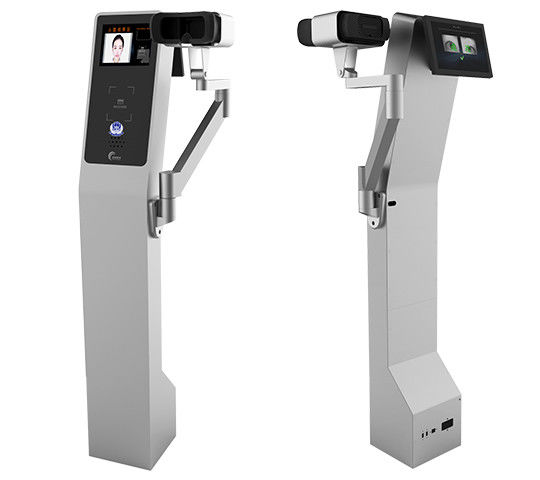

This is an iris collection system that integrates an identity card reader, facial image capture, and dual-eye iris collection functions. The product features a pedestal design and is capable of automatically creating records based on individuals' ID card information. It allows users to self-operate the collection, storage, and recognition of dual-eye iris data. The collected iris data can be transmitted to the iris database server automatically or manually.
The multifunctionality of this system makes it suitable for various applications. It efficiently assists users in identity verification and data collection, enhancing data security and accuracy. Whether used for secure access control, border management, or other scenarios requiring identity verification and data collection, this iris collection system offers efficient and convenient solutions.
Features
1, the product integrates ID card reading, face image acquisition and binocular iris acquisition functions;
2, exquisite appearance, integrated metal chassis design. Can be placed in the hall, channel for personnel collection work, beautiful and generous;
3, dual screen display, intuitive human-computer interaction. The front display visually guides the user to complete the identity collection in an orderly manner, and the rear display helps the staff to safely monitor the collection work and implement feedback on the abnormal situation of the collected person;
4, the mechanical arm design is easier to use. Angle can be adjusted, suitable for more height people;
5, iris collector auxiliary lighting design. Four-level simulation (dark, low light, normal light, strong light) can capture iris images of different application scenarios;
6, iris acquisition terminal adopts the eye mask design, the user only needs to be close to the cover to quickly collect, easy to use;
Specification
Product size | 1400mm*226mm*226mm |
Working mode | Work independently/online |
Use height range | 1.5~1.9m |
Iris collection method | Contact, automatic binocular acquisition |
Iris recognition mode | Any monocular or binocular recognition |
Average acquisition time | <2s |
Average recognition time | <1s |
Swipe card module | Id card reader |
User data capacity | No limit |
False Acceptance Rate (FAR) | 10-7 |
False Rejection Rate (FRR) | 10-3 |
Core algorithm performance | Meet the national standard "Information security technology iris recognition system Technical requirements" (GB/T20979-2007) |
Iris collection criteria | Comply with the international standard of iris image quality ISO/IEC19794-6:2005 |
Iris image size | 640*480pixel |
Display screen | The front display is 8 inches, and the rear display is 10.1 inches |
camera | Standard USB HD camera, in line with face recognition standards |
Internal memory | 4GB 2400MHZ DDR4 |
Hard disk | 500G 25-inch SATA(7200Rpm) mechanical hard disk |
Data interface | Nic USB port |
Operating system | Windows |
Product power supply | 220V |
Operating ambient temperature | 0°C-55℃ |
Working environment light intensity | No requirement |
Application
A wide range of applications for iris acquisition systems include border security, access control, financial operations, healthcare, government administration and enterprise industry to improve security, reduce fraud and increase ease of operation.
