Phaseiris I2c Module Arduino Algorithm Based With 10000 Person Internal Storage

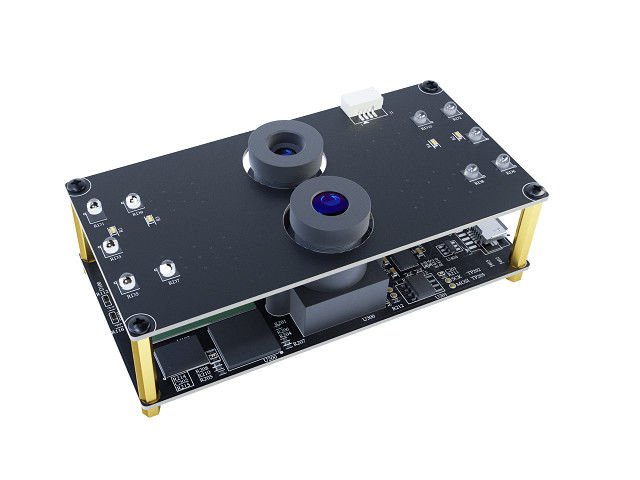

Phaseiris ™ Algorithm-Based USB 2.0 Iris Camera Module with 10000 Person Internal Storage

Description

Iris module adopts dual lens splicing technology to obtain a larger depth of field, increase the recognition range of the module, and improve the user experience; The module is designed for the application needs of miniaturized products in various door and consumer markets. Module small size, compact structure, USB2.0 communication interface, can be flexibly integrated into all kinds of terminal equipment, such as iris safe, convenient collector, iris access control, smart express cabinet, VTM and so on.

Functional

• The module adopts the third-generation Phaseiris ™ iris recognition algorithm technology, which has a more accurate, fast and safe iris acquisition and comparison experience.
• Module integrated 2 2 million pixel image sensors, equipped with dual lens splicing technology, greater recognition range;
• Recognition distance 300mm~500mm;
• False rejection rate (FRR) 10^-3, false acceptance rate (FAR) 10^-7;
• Supports up to 200M video output;
• Support 10000 people iris template local storage;
• Iris comparison speed: 10000 template /s (USB real-time delivery);
• USB application interface, provide the corresponding SDK development kit, easy for users to simple and fast development;
• Support Windows XP/7/8/10, Linux, Android and other multi-system platforms.

Specification

Performance Parameters:

Compliance Standards:

Application

Mainly used in iris access control equipment, equipment integration, etc.
